Helios Ventilatoren 05945 Radial extractor 1990 m³/h 355 mm
EAN:
Part number:
Item no:
Technical specifications
- Height: 600 mm
- Width 690 mm
- Protection class (IP) IP55
- Material of housing: Steel
- Length: 820 mm
- With thermal protection: Yes
- Power consumption 0.16 kW
- Connection: Flange
- Electrical connection: Connection terminals
- Air quantity unloaded: 1990 m³/h.
- Connection voltage 400 V
- DC motor: No.
- Indirect drive: No.
- Max. Air temperature 100°C.
- 2 speed engine: Yes
- Suitable for electronic control: Yes
- Suitable for frequency control: No.
- Suitable for low current control: No.
- Suitable for transformer control: Yes
- Outlet duct diameter 355 mm
- Product type
Radial extractor
0.16 kW
- Air flow rate
1990 m³/h
- Suitable for pipe Ø
355 mm
- Max. temperature
100 °C
- Material
Steel
- Dim
(L x W x H) 820 x 690 x 600 mm
- Width
690 mm
- Height
600 mm
- Length
820 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3551842 Helios Ventilatoren 05945 Radial extractor 1990 m³/h 355 mm
Description

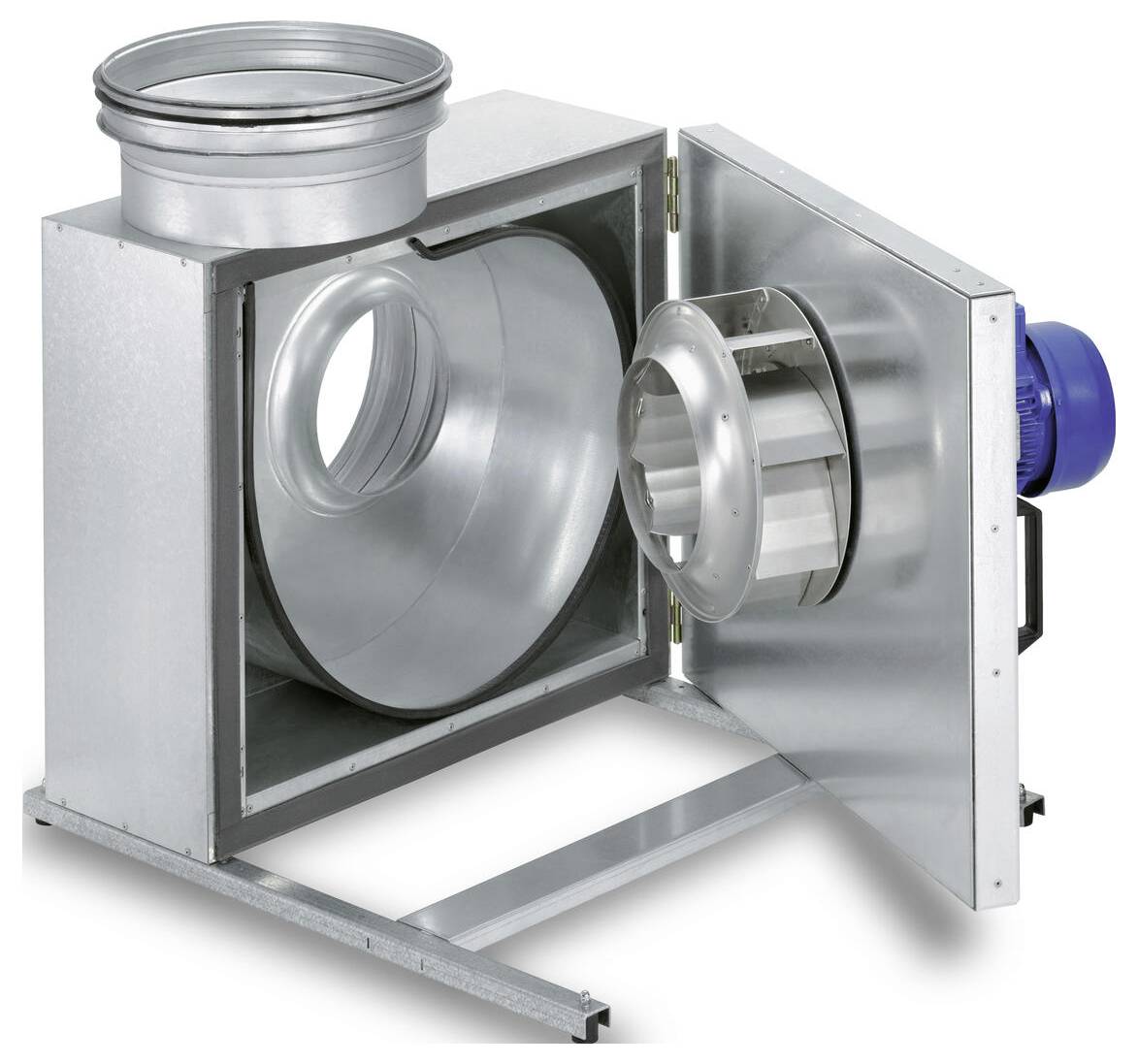

Noise-enclosed radial fan with rotating motor impeller unit and motor lying outside the air flow. Double-walled housing made of zinc-plated steel sheet, soundproofed by lining with 50 mm thick mineral wool insulation material plates. Suction and pressure-side pipe connection nozzle with rubber lip seal. Fully hinged fan door for inspection and cleaning. Inclusive Stable mounting rails with four vibration dampers. High-power radial impeller with backward curved blades made of aluminum. Vibration-free operation thanks to dynamic balancing according to quality level G 6.3 VDI 2060 and DIN ISO 1940. Three-phase motor with star/delta connection, closed design, maintenance-free, with thermal contact, sealed Low-noise ball-bearing with long-term lubrication.
