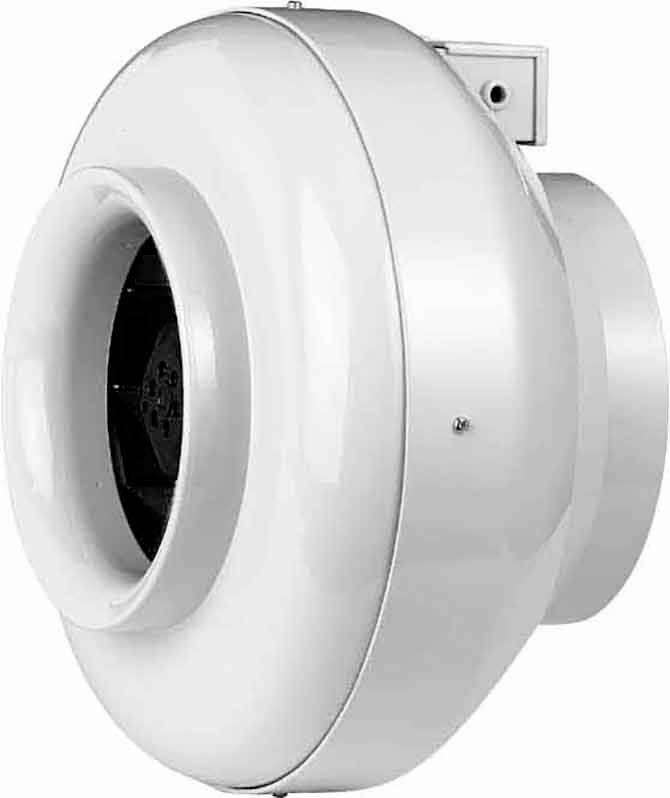

Image similar
Image similar
Helios Ventilatoren 05977 Duct extractor fan 230 V 930 m³/h 200 mm
EAN:
Part number:
Item no:
Technical specifications
- Connection: Flange
- Design: Radial-pipe fan
- Electrical connection: Terminals
- Suitable for electronic control: Yes
- Suitable for frequency control: no.
- Suitable for low current control: no.
- Suitable for transformer control: Yes
- Channel diameter 200 mm
- Max. Air temperature 70 °C.
- With thermal protection: Yes
- 2-speed engine: no.
- Pole-switchable: no.
- Product type
Duct extractor fan
- Nominal voltage
230 V
0.102 kW
- Air flow rate
930 m³/h
- Ventilation features
With nozzle
- Suitable for pipe Ø
200 mm
IP44
- Material
Plastic
- Dim
(Ø x L) 340 mm x 230 mm
- Length
230 mm
- (Ø)
340 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2297959 Helios Ventilatoren 05977 Duct extractor fan 230 V 930 m³/h 200 mm
Description
Radial pipe fan RADAX RR for direct mounting in the pipe system. Housing made of impact-resistant plastic with round connection supports tuned to standard pipes. High-performance radial impeller with backward curved blades made of plastic. Vibration-free running through dynamic balancing according to quality grade G 6.3 VDI 2060 and DIN ISO 1940. Drive: Single-phase AC external rotor motor, thermal contacts wired in series with the winding, closed design, maintenance-free, sealed, low-noise ball bearings with long-term lubrication.
