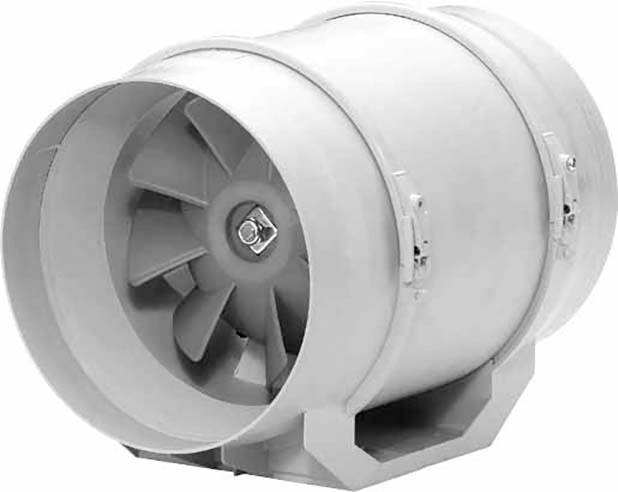

Helios Ventilatoren 06051 Duct extractor fan 230 V 255 m³/h
EAN:
Part number:
Item no:
Technical specifications
- Connection: Flange
- Design: Multi-vent pipe fan
- Electrical connection: Terminals
- Suitable for electronic control: Yes
- Suitable for frequency control: no.
- Suitable for low current control: no.
- Suitable for transformer control: Yes
- Channel diameter 100 mm
- Max. Air temperature 60 °C.
- With thermal protection: Yes
- 2 speed motor: Yes
- Pole-switchable: no.
- Product type
Duct extractor fan
- Nominal voltage
230 V
- Air flow rate
255 m³/h
IP44
- Factory colour
Light grey
- Material
Plastic
- Dim
(Ø x L) 189 mm x 303 mm
- Length
303 mm
- (Ø)
189 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2293443 Helios Ventilatoren 06051 Duct extractor fan 230 V 255 m³/h
Description
Swiveling pipe fan with high pressure and volume output, for space-saving installation in the pipe run. Housing made of impact and corrosion-resistant plastic, color light gray, with molded mounting console for easy installation on wall or ceiling as well as suction and exhaust pipes corresponding to the standard pipe diameters. By loosening the clamping brackets, the fan unit with clamping box can be rotated in any position and removed for maintenance and cleaning. Supplied with dowels and screws. Semi-axial impeller, eight spatially curved thermoplastic blades. Vibration-free running through dynamic balancing according to quality grade G 6.3 VDI 2060 and DIN ISO 1940. Closed, ball bearing capacitor motor with moisture protection, insulation class F, for continuous operation. Maintenance and non-radio interference-free. Motor protection through thermal overload protection in the winding.
