Helios Ventilatoren 06453 Radial extractor 4650 m³/h 400 mm

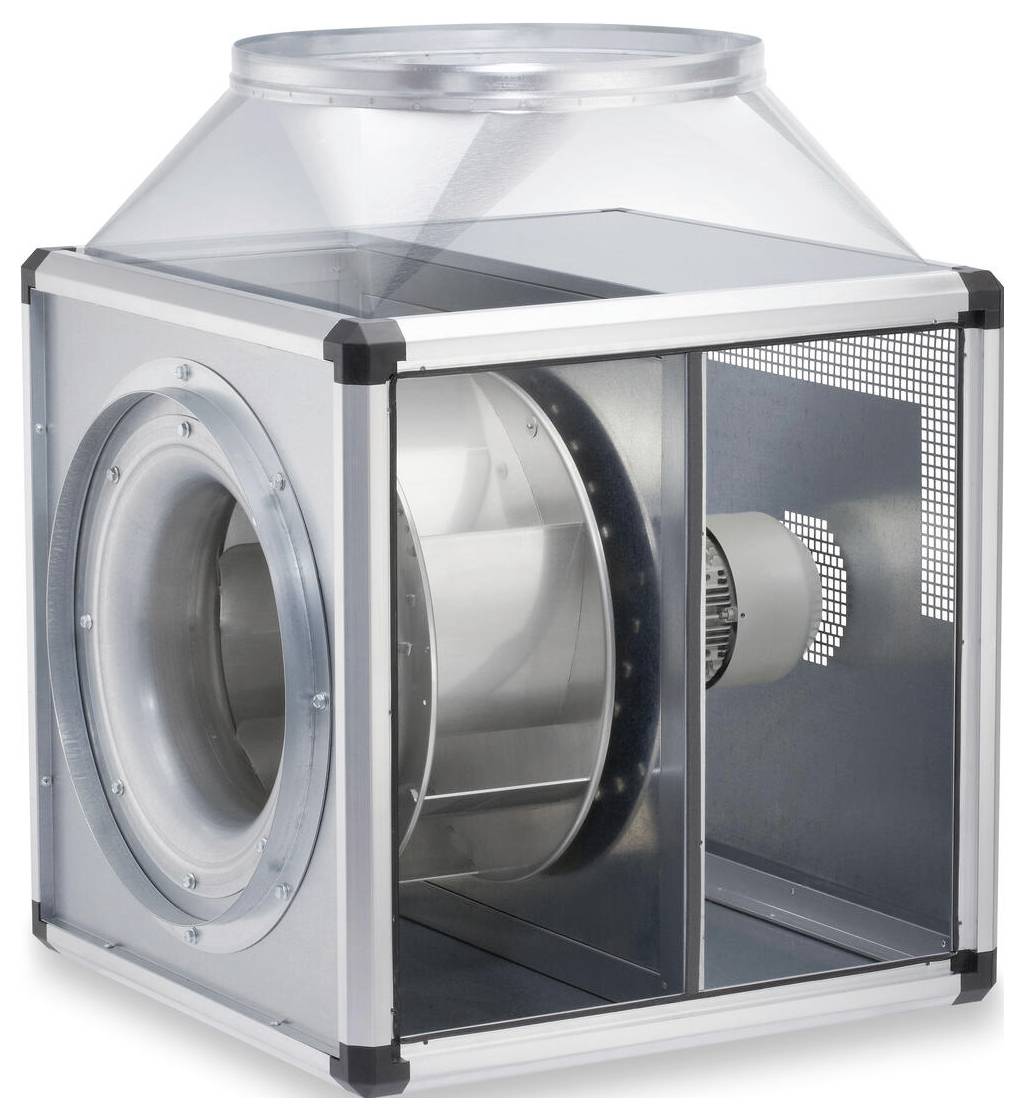

Cubic ventilation box with low-loss pipe connection nozzle and flexible sleeves (for temperatures up to 120 °C suitable) to prevent impact sound. Variably used housing panels for optimal adjustment to structural conditions. Motor is positioned outside the air flow, so can be used to circulate dirty, hot air up to max. 120°C. Supplied as standard with condensation tank and enclosed condensate drain. Application area: Commercial kitchens and many applications of process technology. Easy positioning with the standard crane hook. Self-supporting housing frame construction made of aluminum hollow profiles. Double-walled, 20 mm thick side panels made of galvanized steel plate, sound-and heat-insulated through lining with non-combustible mineral wool. The housing panels can be replaced as desired by accessories such as weather protection grid and condensation tank. Other accessories, wall bracket and rain-proof roof for the desired mounting can be mounted inside and outside. High-power radial impeller with rear curved aluminum blades, directly driven. Vibration-free operation by dynamic balancing together with the motor according to quality level 6.3 according to DIN ISO 1940 T.1 drive by energy-saving, in a closed design, lying outside the flow of feed, rev-controlled EC inner rotor motor in protection class IP54 with highest efficiency Maintenance and radio interference-free, ball-bearing. Integrated electronic temperature monitoring for EC motor and electronics. Continuous speed control with potentiometer or continuous speed regulation with universal control system EUR-EC. Connection of the mains supply; control signals are directly connected in the device at the EC controller

This text is machine translated.
