Helios Ventilatoren 06460 Radial extractor 2520 m³/h 280 mm
EAN:
Part number:
Item no:
Technical specifications
- Height: 492 mm
- Width 569 mm
- Protection class (IP) IP55
- Material of housing: Steel
- Length: 620 mm
- With thermal protection: Yes
- Power consumption: 0.57 kW
- Connection: Flange
- Electrical connection: Connection terminals
- Air quantity unloaded: 2520 m³/h.
- Connection voltage 400 V
- DC motor: No.
- Indirect drive: No.
- Max. Air temperature 100°C.
- 2 speed engine: Yes
- Suitable for electronic control: Yes
- Suitable for frequency control: No.
- Suitable for low current control: No.
- Suitable for transformer control: Yes
- Outlet duct diameter 280 mm
- Product type
Radial extractor
0.57 kW
- Air flow rate
2520 m³/h
- Suitable for pipe Ø
280 mm
- Max. temperature
100 °C
- Material
Steel
- Dim
(L x W x H) 620 x 569 x 492 mm
- Width
569 mm
- Height
492 mm
- Length
620 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3549885 Helios Ventilatoren 06460 Radial extractor 2520 m³/h 280 mm
Description

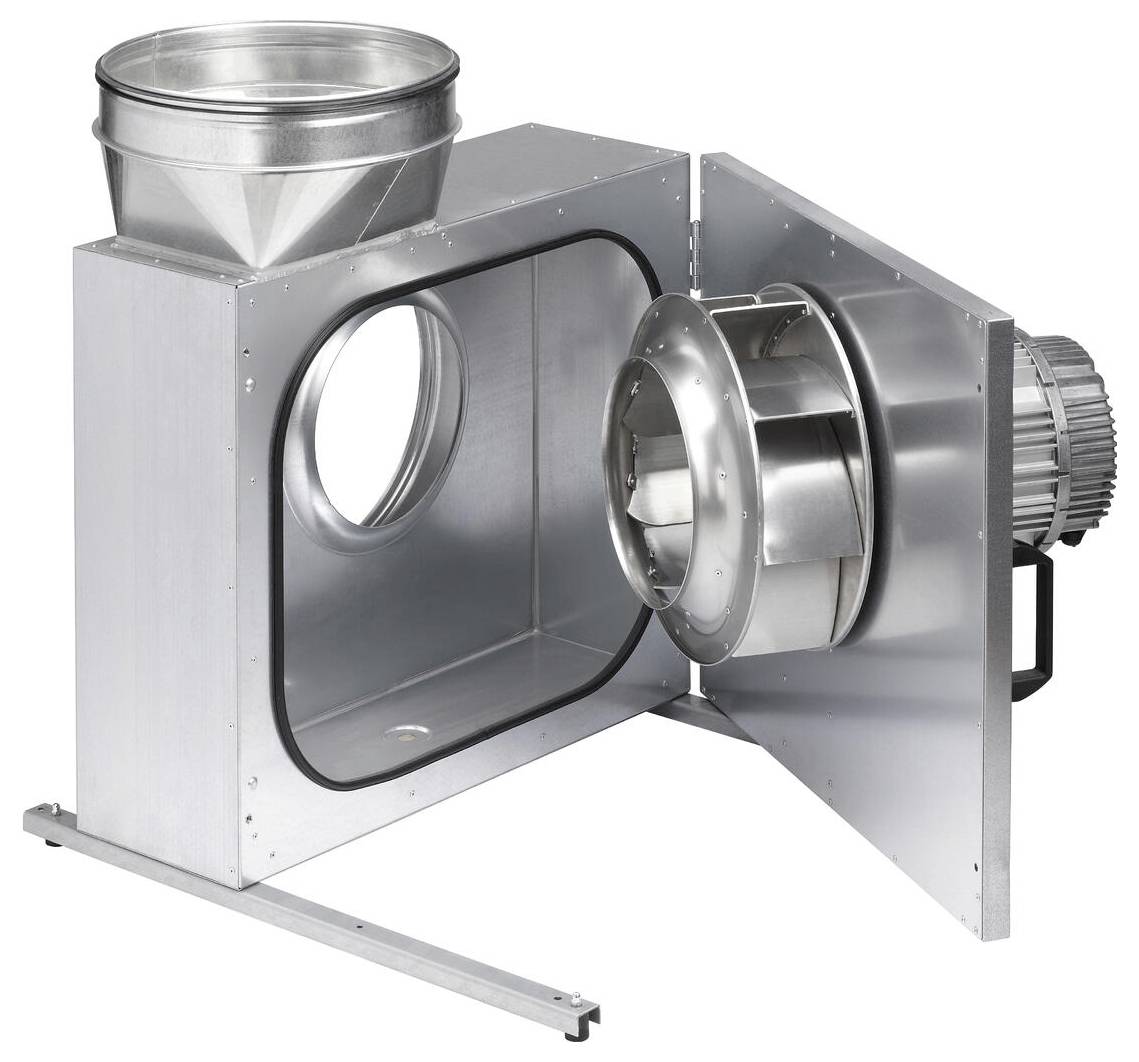

Noise-enclosed radial fan with rotating motor impeller unit and motor lying outside the air flow. Double-walled housing made of zinc-plated steel sheet, soundproofed by lining with 30 mm thick mineral wool insulation material plates. Suction and pressure side pipe connection nozzle with rubber lip seal matched to standard diameter. Fully hinged fan door for inspection and cleaning. Inclusive Stable mounting rails with four vibration dampers. Condensate drain and drip protection with open door as standard. High-power radial impeller with backward curved blades made of aluminum. Vibration-free operation thanks to dynamic balancing according to quality level G 6.3 VDI 2060 and DIN ISO 1940. Three-phase motor with star/delta connection, closed design, maintenance-free, with thermal contact, sealed Low-noise ball-bearing with long-term lubrication.
