Helios Ventilatoren 06523 Control transformer 1 x 230 V 1 x 80 V, 100 V, 130 V, 170 V, 230 V 10 A
EAN:
Part number:
Item no:
Highlights & Details
HELIOS fan speed control transformer TSSW 10
- 1 x 230 V
- 1 x 80 V, 100 V, 130 V, 170 V, 230 V
- 10 A
Technical specifications
- Number of steps: 5
- Lighting: None
- Power control infinitely variable: no.
- With temperature sensor: no.
- Nominal current 10 A
- Product type
Control transformer
- Output voltage
80 V
100 V
130 V
170 V
230 V
- Output current
10 A
- No. of outputs
1 x
- No. of inputs
1 x
- Input voltage
230 V
- Width
120 mm
- Height
122 mm
- Length
112 mm
- Dim
(L x W x H) 112 x 120 x 122 mm
- Output voltage (number x voltage)
1 x 80 V, 100 V, 130 V, 170 V, 230 V
- Input voltage (number x voltage)
1 x 230 V
- Content
1 pc(s)
- Mounting type
L-piece
- Type
TSSW 10
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2297929 Helios Ventilatoren 06523 Control transformer 1 x 230 V 1 x 80 V, 100 V, 130 V, 170 V, 230 V 10 A
Description

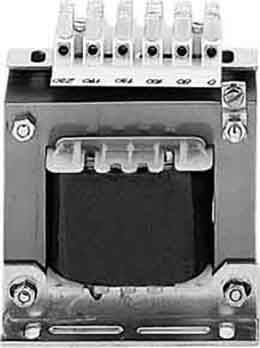

Mounted transformer without housing with foot angle and terminal strip for 5 voltage taps (0/80/100/130/170/230). 50/60 Hz
