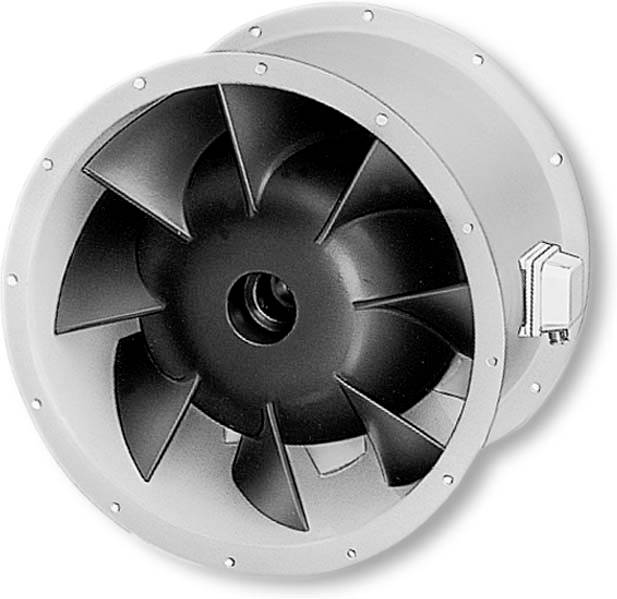

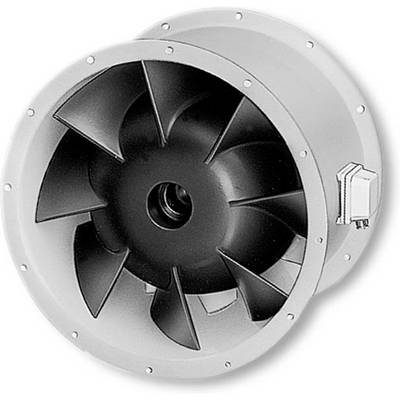

Helios Ventilatoren 06671 Duct extractor fan 400 V 2590 m³/h 250 mm
EAN:
Part number:
Item no:
Technical specifications
- Design: High-pressure pipe fan
- Frequency: 50 Hz
- Channel diameter 250 mm
- Medium temperature: -20..40 °C.
- Product type
Duct extractor fan
- Nominal voltage
400 V
- Air flow rate
2590 m³/h
- Suitable for pipe Ø
250 mm
IP54
- Material
Steel (galvanized)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2293410 Helios Ventilatoren 06671 Duct extractor fan 400 V 2590 m³/h 250 mm
Description
High-pressure pipe fan with cylindrical tube sleeve, flange on both sides, directly driven, explosion-proof according to ATEX. Cylindrical tube made of galvanized sheet steel, with flange molded on both sides, hole pattern according to DIN 24155, built-in post-gluing wheel. Semi-axial impeller, eight spatially curved thermoplastic blades. Vibration-free running through dynamic balancing according to quality grade G 6.3 VDI 2060 and DIN ISO 1940. Three-phase short-circuit rotor motor, closed design, maintenance-free, sealed, low-noise ball bearings with long-term lubrication, not adjustable. Ex-design according to ATEX.
