Helios Ventilatoren 09307 Duct extractor fan 600 m³/h 150 mm
EAN:
Part number:
Item no:
Technical specifications
- Protection type (IP) IP44
- Housing material: Plastic
- Length: 294 mm
- With thermal protection: Yes
- Power consumption: 0.068 kW
- Connection: Flange
- Electrical connection: Other
- Air quantity unloaded: 600 m³/h.
- Connection voltage 230 V
- DC motor: No.
- Indirect drive: No.
- Max. Air temperature 60°C.
- Motor with 2 speeds: No.
- Suitable for electronic control: Yes
- Suitable for frequency control: No.
- Suitable for low current control: No.
- Suitable for transformer control: No.
- Pole switch-able: No.
- Channel diameter 150 mm
- Diameter of housing 215 mm
- Product type
Duct extractor fan
0.068 kW
- Air flow rate
600 m³/h
- Suitable for pipe Ø
150 mm
- Max. temperature
60 °C
- Material
Plastic
- Length
294 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3551726 Helios Ventilatoren 09307 Duct extractor fan 600 m³/h 150 mm
Description

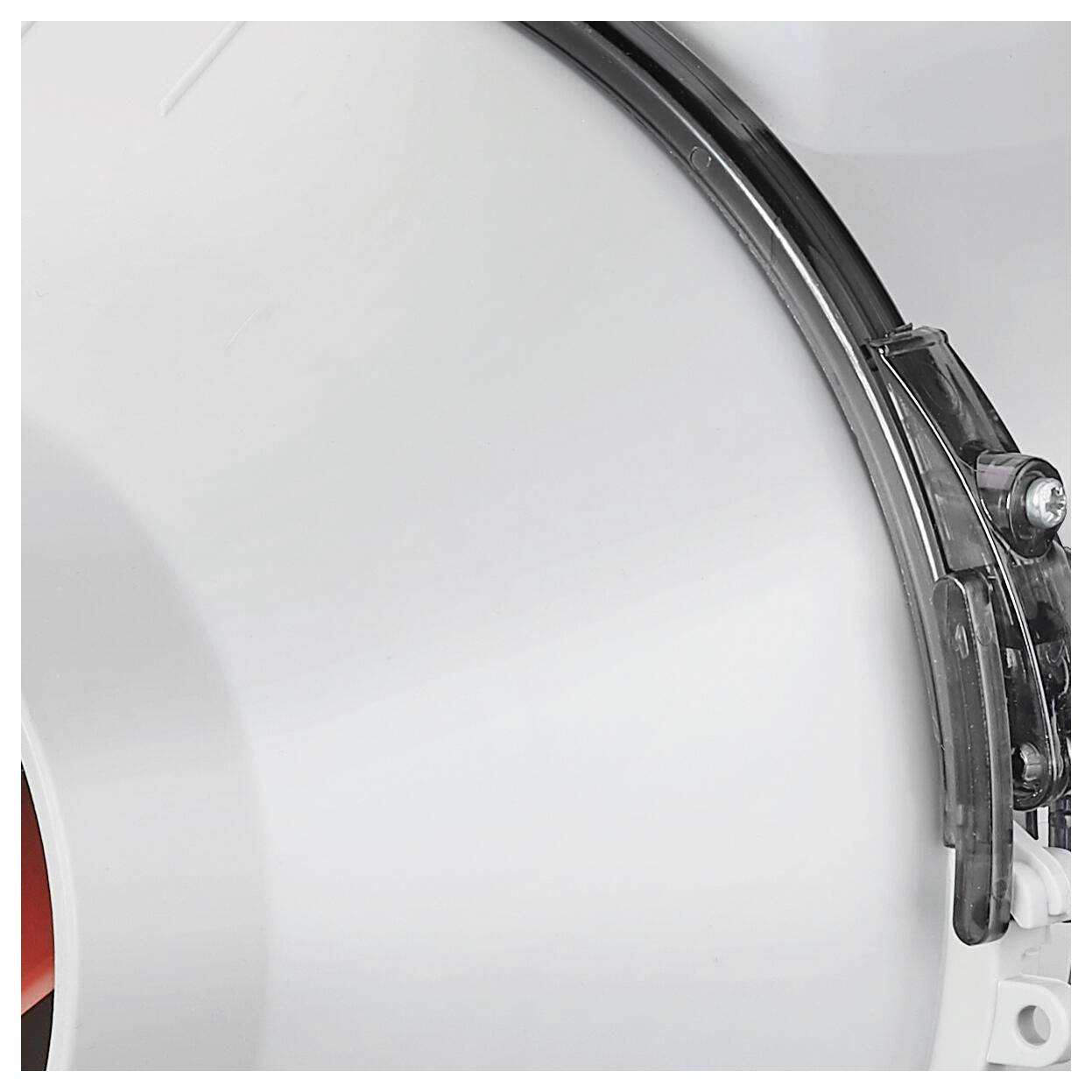

Swivel-out EC tubular fan with high pressure and volume output, for space-saving installation in the duct. Housing made of impact-resistant and corrosion-resistant plastic, light gray color, with pre-formed mounting console for easy installation on wall or ceiling as well as intake and exhaust nozzles matching the standard tube diameters. By loosening the mounting brackets, the fan unit with the terminal box can be rotated to any position and can be removed for maintenance and cleaning. Supplied with rawlplugs and screws. Optimised wheel for high pressure and volume performance, made from high-quality plastic. Dynamically balanced for quiet running. Drive by energy-saving, controllable EC-external rotor motor with moisture protection in protection type IP44 with highest efficiency. Maintenance and radio interference-free, ball-bearing. Integrated electronic temperature monitoring for EC motor and electronics. Infinitely variable speed control with potentiometer PU / PA. Connection via spacious terminal box (IP44) on the outside of the casing, rotatable in every position.
