Helios Ventilatoren 1469 In-line extractor 400 V 8150 m³/h 500 mm
EAN:
Part number:
Item no:
Technical specifications
- Mains frequency 50 Hz
- Rated voltage: 400 V
- Medium temperature: -30..60°C
- Volume flow 8150 m³/h
- Speed 1350 1 rpm
- Protection class (IP) IP55
- Design: Ventilation and ventilation
- Nominal width 500 mm
- Shutter flap: Without
- Product type
In-line extractor
- Nominal voltage
400 V
- Air flow rate
8150 m³/h
- Suitable for pipe Ø
500 mm
IP55
- Factory colour
White
- Type
Ventilation
- Operating voltage
400 V
- Max. temperature
60 °C
- Min. temperature
-30 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3161785 Helios Ventilatoren 1469 In-line extractor 400 V 8150 m³/h 500 mm
Description

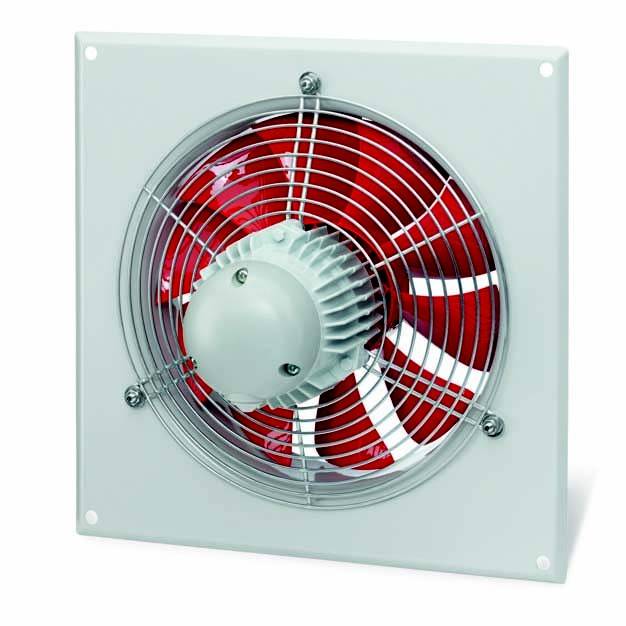

Axial high-performance fan with square mounting plate, inlet nozzle, directly driven. Square mounting plate with molded nozzle made of galvanized steel plate, double painted, papyrus white color. Wheel with 7 blades made of thermoplastic. High degree of efficiency, low operating noise. Vibration-free operation thanks to dynamic balancing according to quality level G 6.3 VDI 2060 and DIN ISO 1940. Three-phase short-circuit motors with a double-turn star delta connection, closed design, maintenance-free, sealed and low-noise ball bearings with long-term lubrication.
