Helios Ventilatoren 394 In-line extractor 400 V 2920 m³/h 355 mm
EAN:
Part number:
Item no:
Technical specifications
- Material of housing: Steel, treated
- Air quantity unloaded: 2920 m³/h.
- Connection voltage 400 V
- Power consumption 0.145 kW
- With thermal protection: Yes
- DC motor: No.
- Indirect drive: No.
- Electrical connection: Connection terminals
- Protection class (IP) IP55
- Max. Air temperature 60°C.
- 2 speed engine: Yes
- Suitable for electronic control: Yes
- Suitable for frequency control: No.
- Suitable for low current control: No.
- Suitable for transformer control: Yes
- Pole reversal selectable: Yes
- Length 300 mm
- Diameter of housing 420 mm
- Channel diameter 355 mm
- Connection: Flange
- Product type
In-line extractor
- Nominal voltage
400 V
- Current consumption
145 W
145 W
- Air flow rate
2920 m³/h
- Ventilation features
Adjustable
- Suitable for pipe Ø
355 mm
IP55
- Material
Steel
- Dim
(Ø x L) 355 mm x 300.00 mm
- Length
300.00 mm
- Depth
300 mm
- (Ø)
355 mm
- Operating voltage
400 V
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3161546 Helios Ventilatoren 394 In-line extractor 400 V 2920 m³/h 355 mm
Description

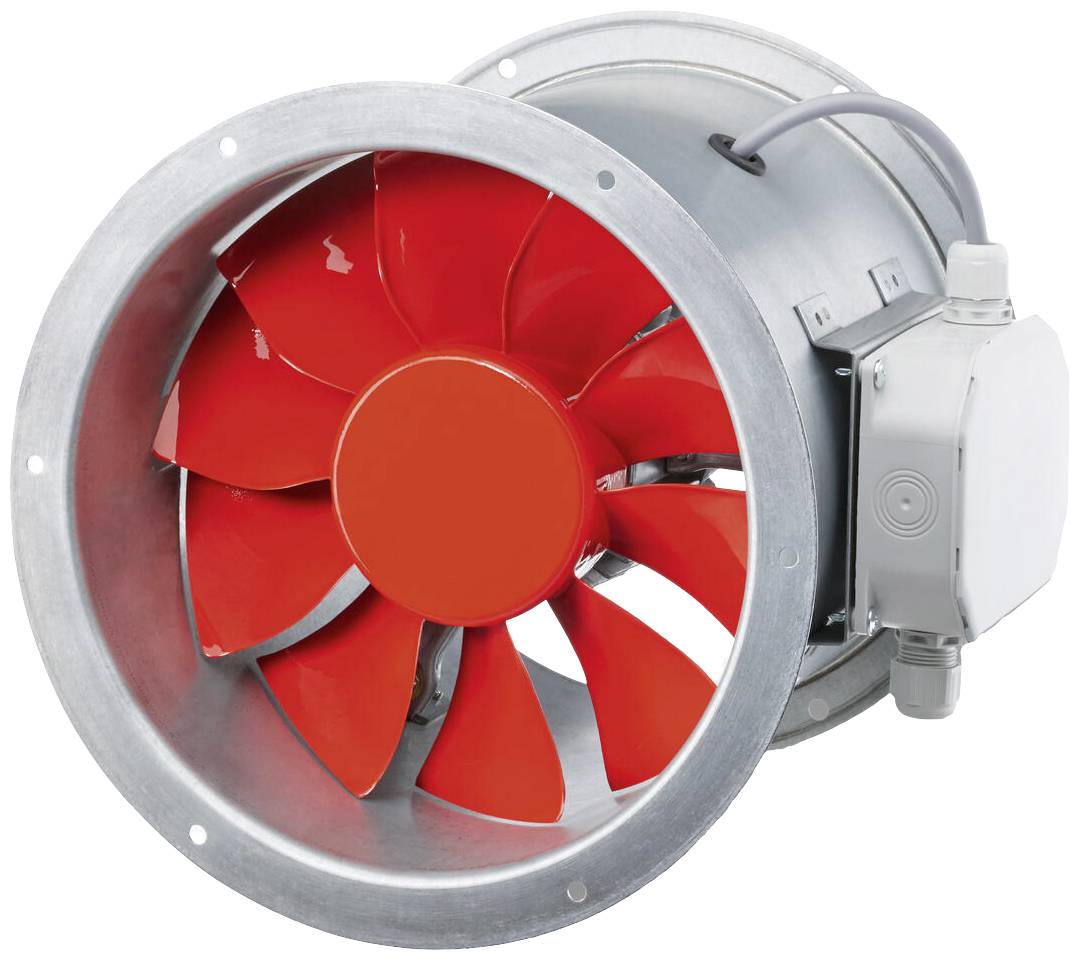

Axial high-power fan cylindrical tube shell, two-sided flanges, directly driven. Cylindrical tube made of galvanized steel plate, surrounded with impeller, formed flange on both sides, hole pattern according to DIN 24155. With external terminal box. Wheel with high performance characteristics with profiled plastic blades, aerodynamically optimized for application, dynamically balanced. Three-phase short-circuit motors, with dahland winding (pole-selectable), closed design, maintenance-free, sealed, Low-noise ball-bearing with long-term lubrication.
