Helios Ventilatoren 403 In-line extractor 400 V 5810 m³/h 450 mm
EAN:
Part number:
Item no:
Technical specifications
- Material of housing: Steel, treated
- Air quantity unloaded: 5810 m³/h.
- Connection voltage 400 V
- Power consumption 0.404 kW
- With thermal protection: Yes
- DC motor: No.
- Indirect drive: No.
- Electrical connection: Connection terminals
- Protection class (IP) IP55
- Max. Air temperature 60°C.
- 2 speed engine: Yes
- Suitable for electronic control: Yes
- Suitable for frequency control: No.
- Suitable for low current control: No.
- Suitable for transformer control: Yes
- Pole reversal selectable: Yes
- Length 330 mm.
- Diameter of housing 515 mm
- Channel diameter 450 mm
- Connection: Flange
- Product type
In-line extractor
- Nominal voltage
400 V
- Current consumption
404 W
404 W
- Air flow rate
5810 m³/h
- Suitable for pipe Ø
450 mm
IP55
- Material
Steel
- Dim
(Ø x L) 450 mm x 330.00 mm
- Length
330.00 mm
- Depth
330 mm
- (Ø)
450 mm
- Operating voltage
400 V
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3161329 Helios Ventilatoren 403 In-line extractor 400 V 5810 m³/h 450 mm
Description

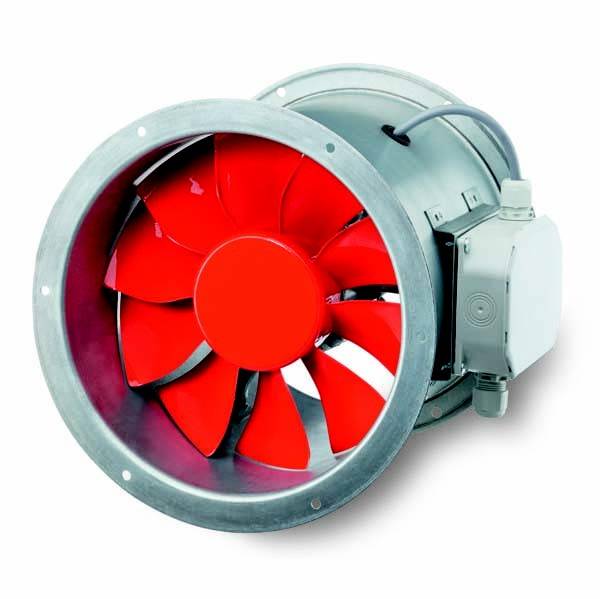

Axial high-power fan cylindrical tube shell, two-sided flanges, directly driven. Cylindrical tube made of galvanized steel plate, surrounded with impeller, formed flange on both sides, hole pattern according to DIN 24155. With external terminal box. Wheel with 7 blades made of thermoplastic. High degree of efficiency, low operating noise. Vibration-free operation thanks to dynamic balancing according to quality level G 6.3 VDI 2060 and DIN ISO 1940. Three-phase short-circuit motors, with dahland winding (pole-selectable), closed design, maintenance-free, sealed, Low-noise ball-bearing with long-term lubrication.
