Helios Ventilatoren 437 In-line extractor 230 V 1030 m³/h 250 mm
EAN:
Part number:
Item no:
Technical specifications
- Nominal voltage: 230 V
- Frequency: 50 Hz
- Power consumption: 0.06 kW
- Material of housing: Steel
- Air quantity unloaded: 1030 m³/h.
- Medium temperature: -20..40°C
- Protection class (IP) IP55
- Nominal diameter of channel 250 mm
- Mounting place: Pipe
- Device group according to Directive 94/9/EC: II.
- Temperature class according to directive 94/9/EC: T3
- Product type
In-line extractor
- Nominal voltage
230 V
- Current consumption
60 W
60 W
- Air flow rate
1030 m³/h
- Suitable for pipe Ø
250 mm
IP55
- Material
Steel
- Dim
(Ø) 250 mm
- (Ø)
250 mm
- Operating voltage
230 V
- Max. temperature
40 °C
- Min. temperature
-20 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3161581 Helios Ventilatoren 437 In-line extractor 230 V 1030 m³/h 250 mm
Description

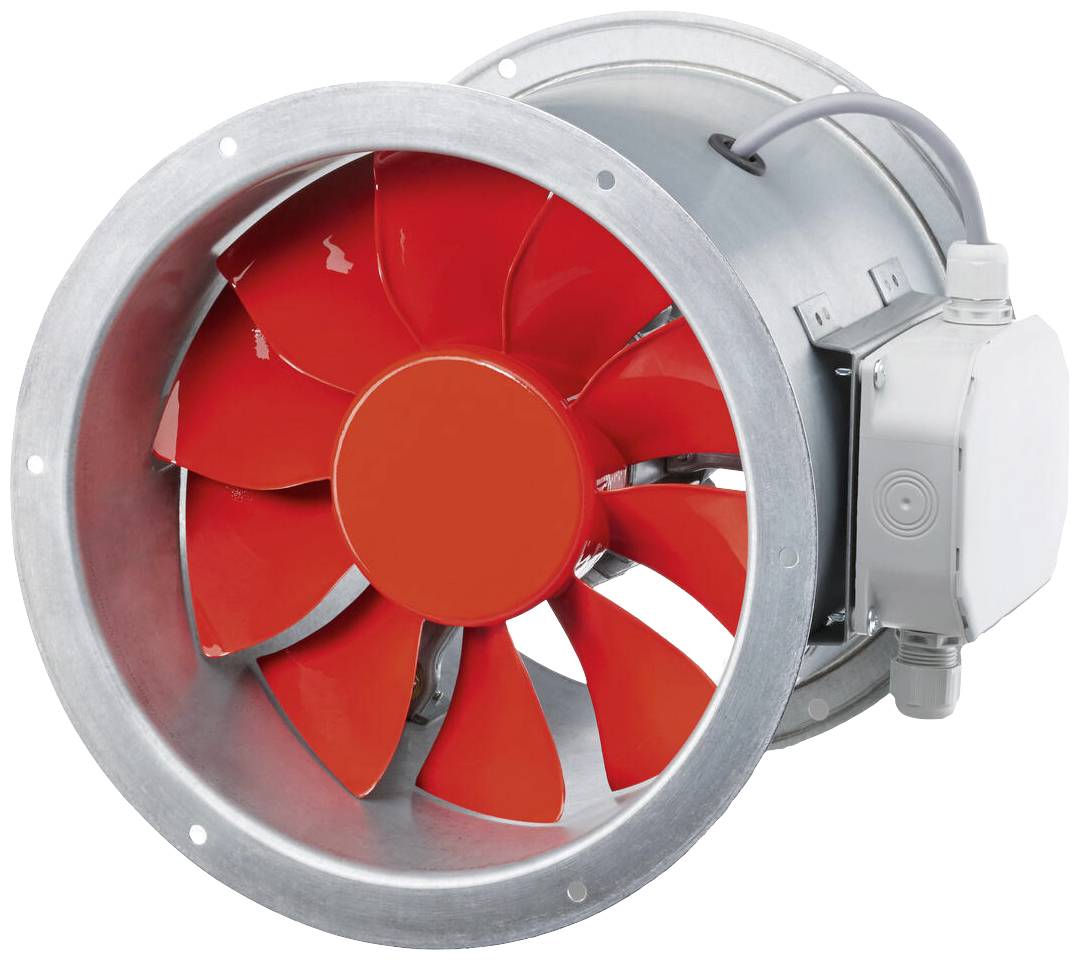

Axial high-performance fan with cylindrical tube shell, two-sided flanges, directly driven, explosion-protected according to ATEX. Cylindrical tube made of galvanized steel plate, surrounded with impeller, formed flange on both sides, hole pattern according to DIN 24155. With external terminal box. Wheel with 7 blades made of thermoplastic. High degree of efficiency, low operating noise. Vibration-free operation thanks to dynamic balancing according to quality level G 6.3 VDI 2060 and DIN ISO 1940. Can be used in the range of -20 °C to +40 °C. Surface resistance less than 1 GOhm. Single-phase AC capacitor motor closed construction, maintenance-free, sealed, low-noise ball bearings with long-term lubrication. Ex design according to ATEX.
