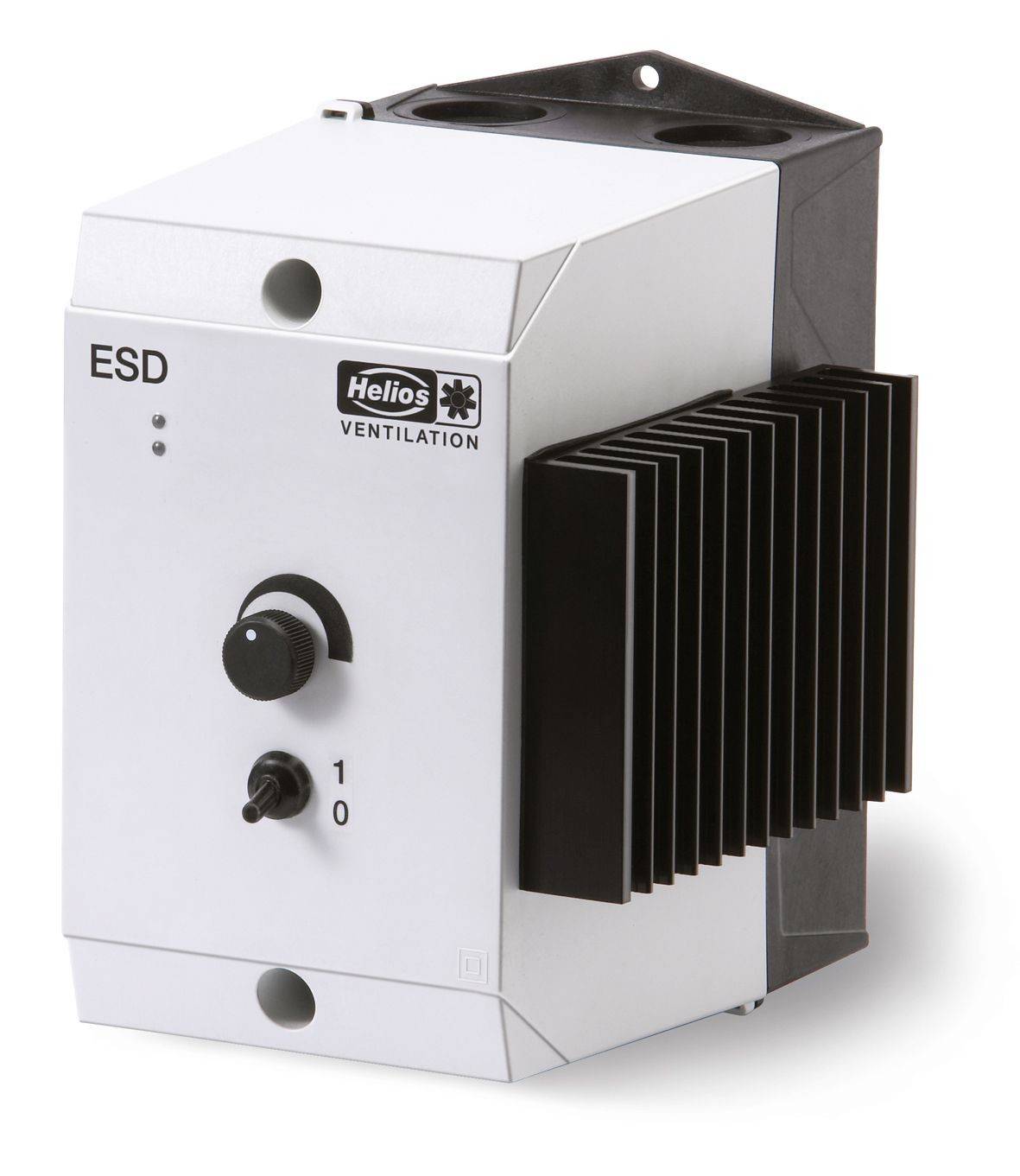

Helios Ventilatoren 502 Speed limiter White
EAN:
Part number:
Item no:
Technical specifications
- Mounting type: Surface-mounted
- Colour: white
- Nominal current: 11.5 A
- Continuous power regulation: Yes
- Control mode: Rotary knob
- With temperature sensor: Yes
- Height: 160 mm
- Width 160 mm
- Depth: 165 mm
- Protection class (IP) IP65
- Product type
Speed limiter
- Content
1 pc(s)
IP65
- Factory colour
White
- Dim
(W x H x D) 160.00 x 160.00 x 165.00 mm
- Width
160.00 mm
- Depth
165.00 mm
- Height
160.00 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3161250 Helios Ventilatoren 502 Speed limiter White
Description
Comfortable, continuous electronic speed controller for 3~ fans, which can be controlled via phase cut through voltage drop. The latest technology thanks to the use of microcontrollers. Analogue control 0..10 V by customer-side signal or electronic temperature controller EKW 6.3, parallel control of several control devices is possible. Distribution of the ventilation performance among several fan groups. With overload protection and full motor protection by monitoring the thermal contacts of the motor. Meets EMC Class B requirements, no shielded cable between equipment and motor required.
