Helios Ventilatoren 6129 Radial extractor 230 V 5420 m³/h
EAN:
Part number:
Item no:
Technical specifications
- Mains frequency 50 Hz
- Rated voltage: 230 V
- Material of housing: Steel sheet
- Volume flow 5420 m³/h
- Rated output: 0.71 kW
- Protection class (IP) IP54
- Direction: Radial
- Weight: 60000 g.
- Channel width 700 mm
- Canal height 400 mm
- Medium temperature: -20..60°C
- Product type
Radial extractor
- Nominal voltage
230 V
0.710 kW
- Air flow rate
5420 m³/h
- Min. temperature
-20 °C
- Max. temperature
60 °C
IP54
- Material
Steel plate
- Weight
60000 g
- Dim
(W x H) 700 mm x 400 mm
- Width
700 mm
- Height
400 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3161774 Helios Ventilatoren 6129 Radial extractor 230 V 5420 m³/h
Description

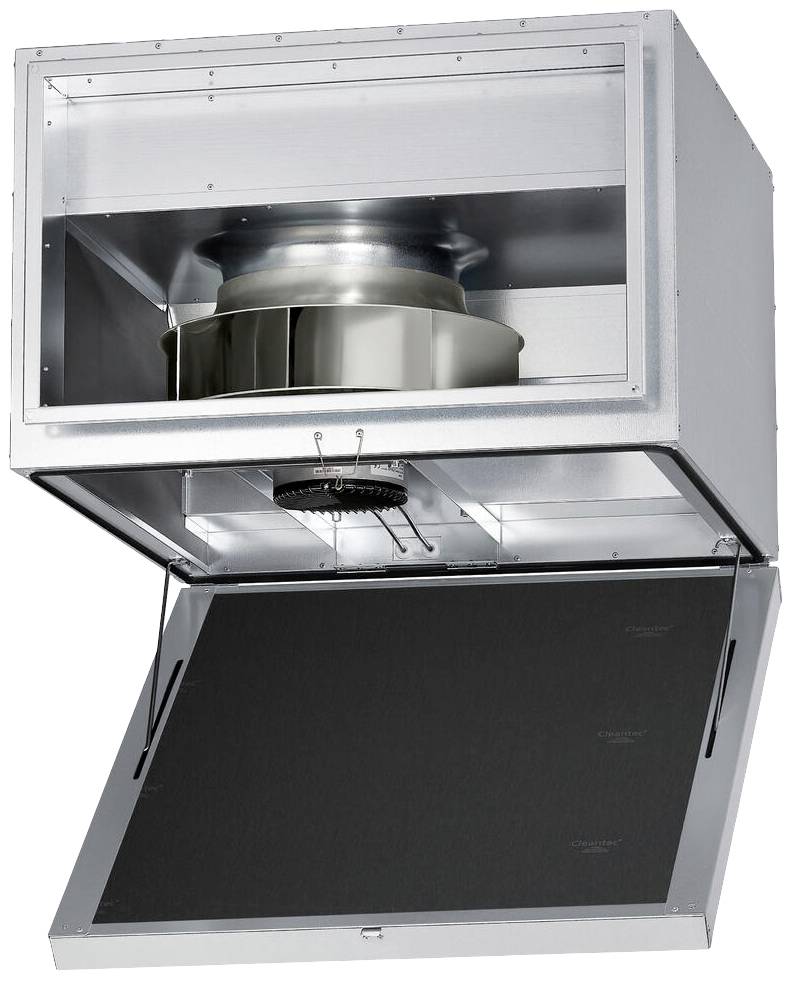

Radial EC duct fan, silenced, for direct mounting in a rectangular duct system, fan unit can be swiveled out. Casing made of zinc-plated steel sheet with standardized channel flange profiles on both sides, space-saving design, sound-absorbing inner lining with 50mm thick mineral fiberboards deposited. Service-friendly with swivel motor-impeller unit. High-power radial impeller with backward curved blades made of plastic. Vibration-free operation thanks to dynamic balancing. Aerodynamic optimized, inflow via nozzle. Drive by energy-saving, controllable EC external rotor motor in protection class IP54 with the highest degree of efficiency. Maintenance and radio interference-free, ball-bearing. Integrated electronic temperature monitoring for EC motor and electronics. Continuous speed control with potentiometer or continuous speed regulation with universal control system EUR-EC. Connection to lead cables via standard terminal box (IP54).
