Helios Ventilatoren 6143 Radial extractor 230 V 4940 m³/h
EAN:
Part number:
Item no:
Technical specifications
- Mains frequency 50 Hz
- Rated voltage: 230 V
- Material of housing: Steel sheet
- Volume flow 4940 m³/h
- Rated output: 0.527 kW
- Protection class (IP) IP54
- Direction: Radial
- Weight: 62000 g.
- Channel width 700 mm
- Canal height 400 mm
- Medium temperature: -20..60°C
- Product type
Radial extractor
- Nominal voltage
230 V
0.527 kW
- Air flow rate
4940 m³/h
- Min. temperature
-20 °C
- Max. temperature
60 °C
IP54
- Material
Steel plate
- Weight
62000 g
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3161769 Helios Ventilatoren 6143 Radial extractor 230 V 4940 m³/h
Description

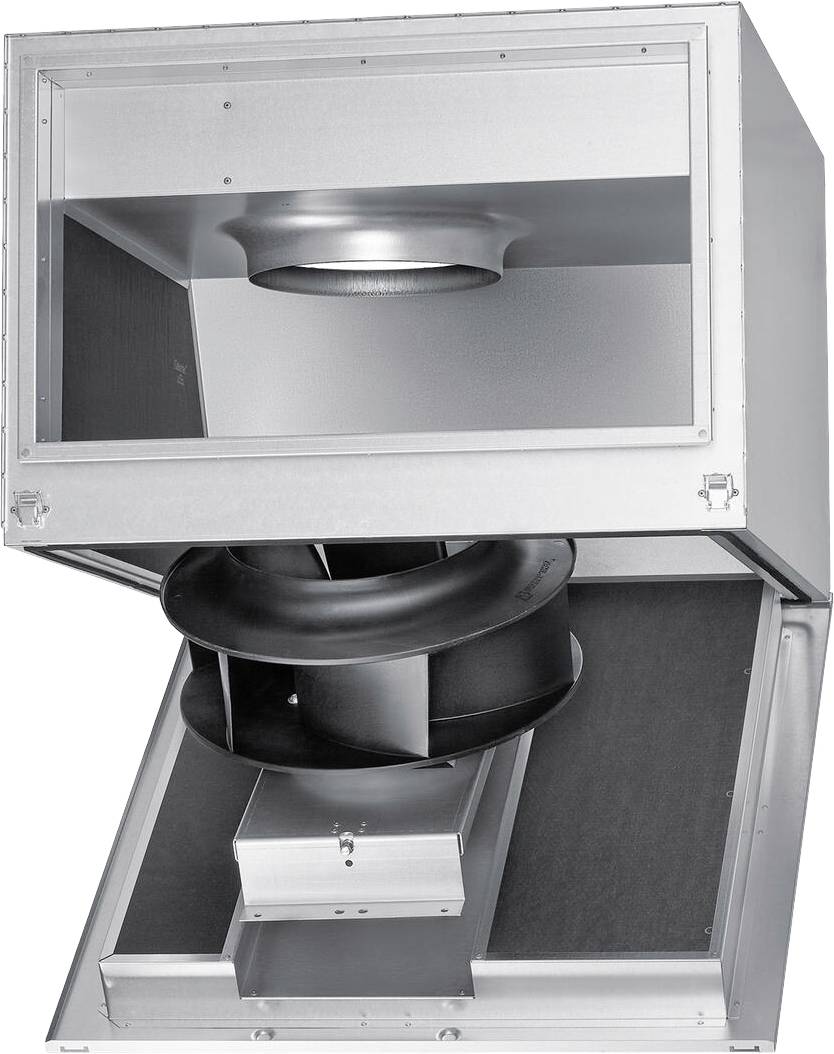

Channel radial fan, sound-insulated for direct mounting in rectangular duct system, fan unit can be swiveled out. Casing made of zinc-plated steel sheet with standardized channel flange profiles on both sides, space-saving design, sound-absorbing inner lining with 50mm thick mineral fiberboards deposited. Service-friendly with swivel motor-impeller unit. High-power radial impeller with backward curved blades made of plastic. Vibration-free operation due to dynamic balancing according to quality level G 6.3 DIN ISO 1940 T.1. Drive: Maintenance-free single-phase alternating current external rotor motor, closed design, thermal contacts led out on clamping board, speed can be controlled by means of 5-step transformer or electronically (continuously variable), winding with moisture protection impregnation, sealed, low-noise ball bearings with long-term lubrication. Mains connection at pre-mounted terminal box (IP54).
