Helios Ventilatoren 76159170 Control transformer 1 x 400 V 1 x 80 V, 115 V, 140 V, 200 V, 280 V, 400 V 7 A
EAN:
Part number:
Item no:
Highlights & Details
Helios fans speed control transformer TSSD 7
- 1 x 400 V
- 1 x 80 V, 115 V, 140 V, 200 V, 280 V, 400 V
- 7 A
Technical specifications
- Number of steps: 5
- Illumination: None
- Continuous power regulation: No.
- With temperature sensor: No.
- Nominal current 7 A
- Product type
Control transformer
- Output voltage
80 V
115 V
140 V
200 V
280 V
400 V
- Output current
7 A
- No. of outputs
1 x
- No. of inputs
1 x
- Input voltage
400 V
- Connection
Clamp
- Width
120 mm
- Height
122 mm
- Length
134 mm
- Dim
(L x W x H) 134 x 120 x 122 mm
- Output voltage (number x voltage)
1 x 80 V, 115 V, 140 V, 200 V, 280 V, 400 V
- Input voltage (number x voltage)
1 x 400 V
- Content
1 pc(s)
- Mounting type
Recess-mount
- Features
adjustable
- Type
TSSD 7
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3332598 Helios Ventilatoren 76159170 Control transformer 1 x 400 V 1 x 80 V, 115 V, 140 V, 200 V, 280 V, 400 V 7 A
Description

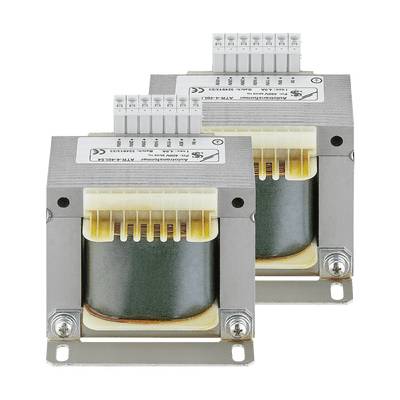

Two built-in transformers with base rails for connection to V-switching. Without casing, for control cabinet installation. Terminals for 5 voltage probes (0/80(*115)/140/200/280/400 Volt). 50/60 Hz *Removable for voltage-controlled, ex-protected channel and RD roof fans
