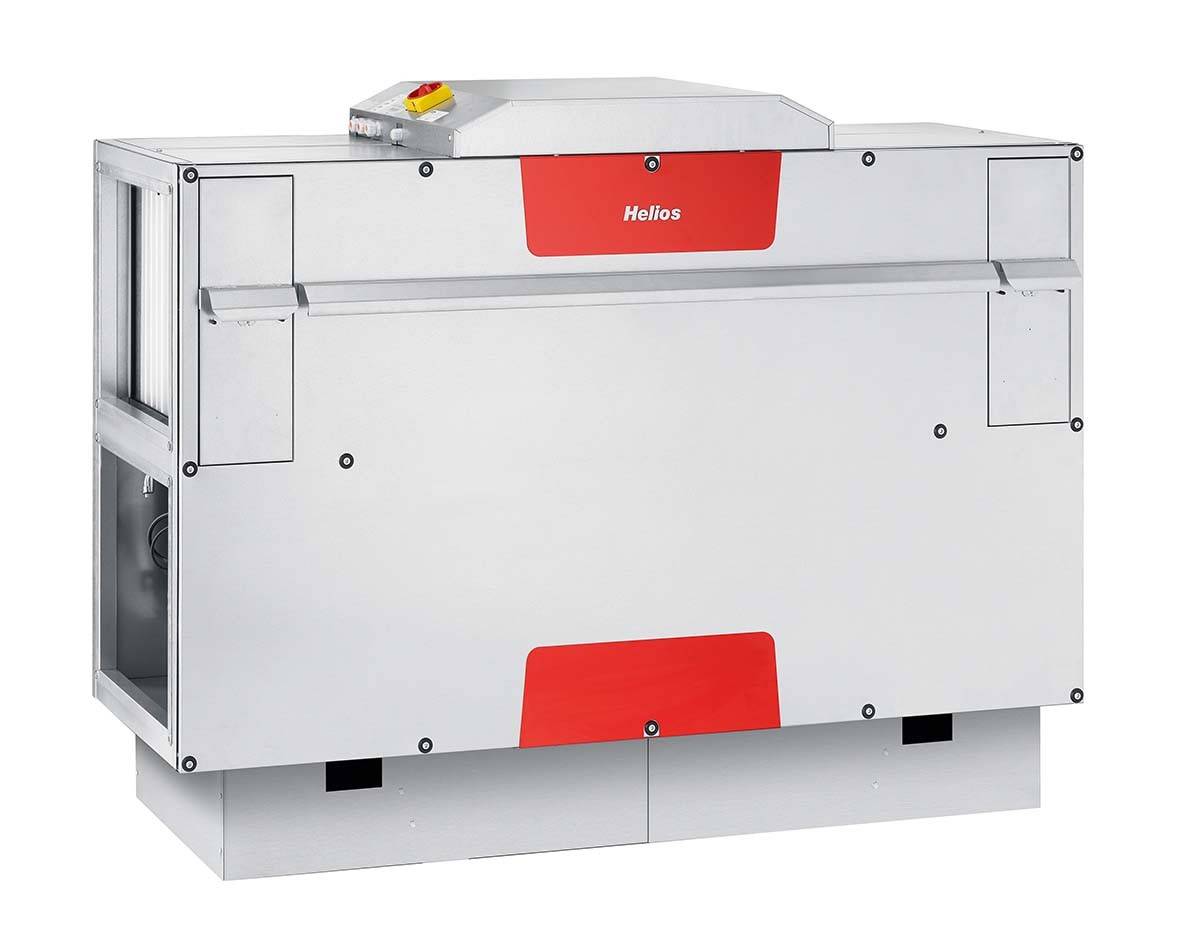

Helios Ventilatoren 8328 Heat recovery unit
EAN:
Part number:
Item no:
Technical specifications
- Heat recovery via: Cross-flow
- Type of ventilation: Central supply and exhaust air
- Heat source: Exhaust air
- Nominal power 280..2780 W
- Heat Readiness: 90%
- Voltage: 230 V
- Frequency: 50 Hz
- Nominal current 2.5 A
- With warm water: No.
- With heater: Yes
- With remote control: Yes
- With timer switch: Yes
- With humidity sensor: No.
- Additional electrical heater: 2.5 kW
- Air flow: 0..880 m³/h.
- Air flow at 100 Pa: 770 m³/h.
- With water-air heater: Yes
- With additional heater: Yes
- Noise emission 54 dB(A)
- Protection class (IP) IP20
- Height: 1097 mm
- Width 1480 mm
- Depth: 424 mm
- Weight 175 kg.
- Product type
Heat recovery unit
- Content
1 pc(s)
IP20
- Weight
175.00 kg
- Dim
(W x H x D) 1480.00 x 1097.00 x 424.00 mm
- Width
1480.00 mm
- Depth
424.00 mm
- Height
1097.00 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3161257 Helios Ventilatoren 8328 Heat recovery unit
Description
Central unit with heat recovery for compact and space-saving floor installation (standing). With a wide range of uses in residential, commercial and industrial applications. Certified according to passive house-standard. Two low-noise EC high-power fans with backward curved wheels guarantee the highest energy efficiency. The special control technology enables constant volume or constant pressure control. Clean external air supply through F7-filter. An M5 filter (F5) is provided on the side of the exhaust air exchanger. All filters are pressure monitored and can be exchanged with a few simple steps. Large-area, highly efficient cross-flow heat exchanger made of aluminum with up to 90% heat availability and energy-efficient EC motors. Disassembly possible with a few handles. Optionally with integrated hot water heater register.
