Helios Ventilatoren 8694 Radial extractor 400 V 5830 m³/h
EAN:
Part number:
Item no:
Technical specifications
- Mains frequency 50 Hz
- Rated voltage: 400 V
- Material of housing: Steel sheet
- Volume flow 5830 m³/h
- Rated output: 0.818 kW
- Protection class (IP) IP54
- Direction: Radial
- Weight: 48500 g.
- Channel width 700 mm
- Canal height 400 mm
- Medium temperature: -40..60°C
- Product type
Radial extractor
- Nominal voltage
400 V
0.818 kW
- Air flow rate
5830 m³/h
- Min. temperature
-40 °C
- Max. temperature
60 °C
IP54
- Material
Steel plate
- Weight
48500 g
- Dim
(W x H) 700 mm x 400 mm
- Width
700 mm
- Height
400 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3161348 Helios Ventilatoren 8694 Radial extractor 400 V 5830 m³/h
Description

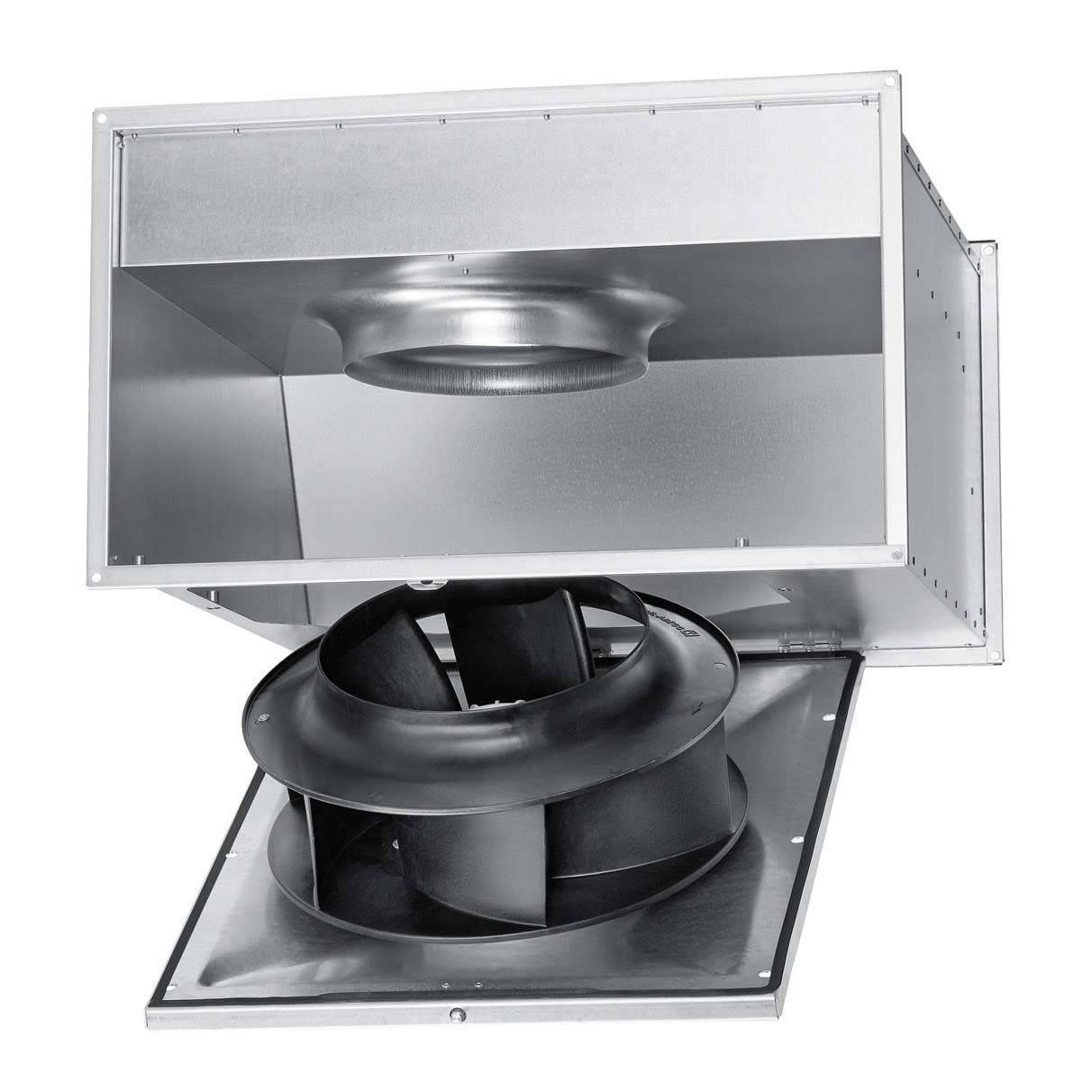

Channel radial fan with reverse curved blades for direct mounting in rectangular duct system, fan unit can be swiveled out. Casing made of zinc-plated sheet steel with standardized channel flange profiles on both sides, space-saving design, service-friendly by swinging motor impeller unit, additional locking of the swivel unit from BG 450. High-power radial impeller with backward curved blades made of plastic and galvanized steel. Vibration-free operation due to dynamic balancing according to quality level G 6.3 DIN ISO 1940 T.1. Drive: Three-phase external rotor motor, built-in thermal contacts led out on clamping board, closed design, speed can be controlled by means of 5-step transformer or electronically (continuously variable) as well as control by means of Helios frequency converter with all-pin sine filter is possible, winding with moisture protection impregnation, maintenance-free, sealed, low-noise ball bearings with long-term lubrication. Mains connection at pre-mounted terminal box (IP54).
