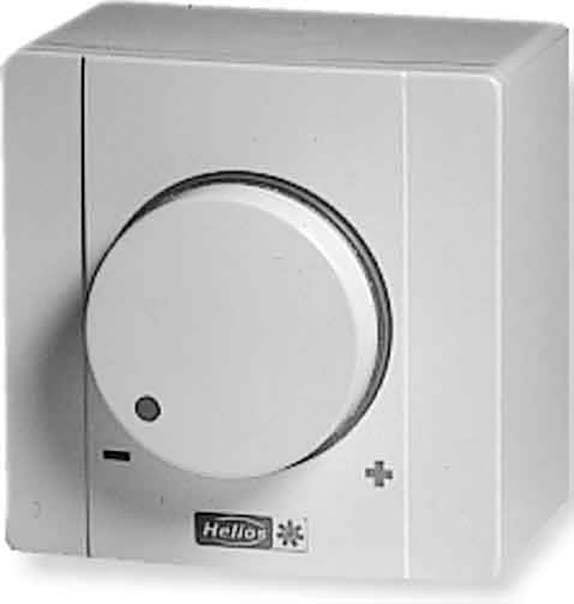

Helios Ventilatoren BSX AC speed controller 1 A
EAN:
Part number:
Item no:
Output voltage (max.)
230 V
Max. rotor current
1 A
Product type
AC speed controller
Type
BSX
Nominal current
1 A
Technical specifications
- Base element without cover: Yes
- Operating mode: Rotary/push button
- Lighting: Illuminated when switched on
- Colour: white
- Height: 80 mm
- Power control infinitely variable: Yes
- With temperature sensor: no.
- Mounting type: Surface-mounted
- Switch contact: Yes
- Type
BSX
- Nominal current
1 A
- Output voltage (max.)
230 V
- Max. rotor current
1 A
- Type
With enclosure
- Dim
(L x W) 65 mm x 80 mm
- Length
65 mm
- Width
80 mm
IP40
- Manufacturer part #
00240
- Factory colour
White
- UKCA
yes
- Product type
AC speed controller
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2295414 Helios Ventilatoren BSX AC speed controller 1 A
Description
AP speed controller with reversible fan switch (ventilation) in white plastic housing. Only for fans that can be reversed by means of changeover switches (e.g. HVR 150/2 RE, REW 150 and 200). Minimum load 0.15 A.
