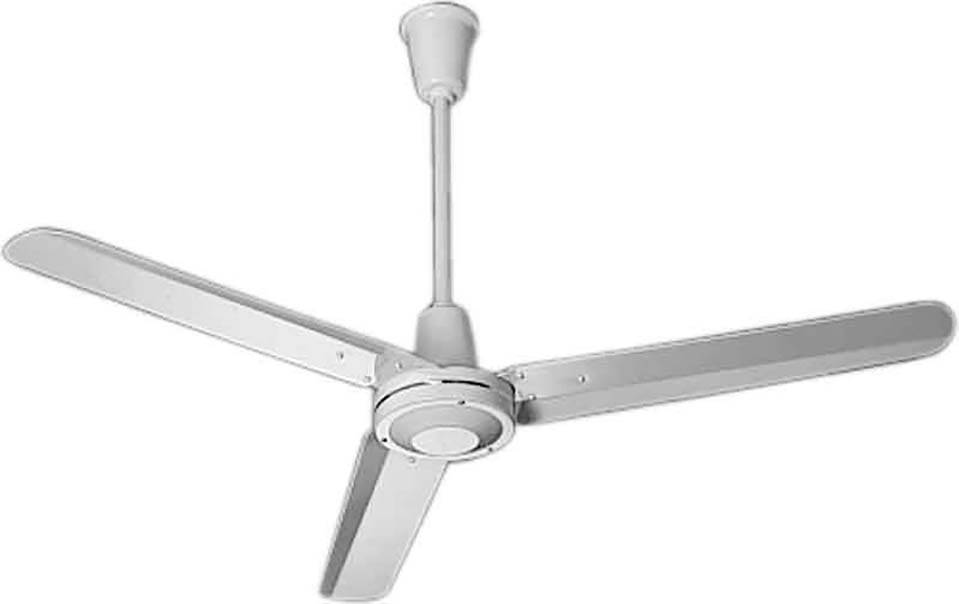

Helios Ventilatoren DVW 140 Ceiling fan (Ø x H) 1400 mm x 585 mm
EAN:
Part number:
Item no:
Technical specifications
- Speed 270 rpm
- Diameter of fan wheel: 1400 mm
- Suitable for wall mounting: no.
- Product type
Ceiling fan
- Operating voltage
230 V
- (Ø)
1400 mm
- Rotational speed
270 U/min
- Dim
(Ø x H) 1400 mm x 585 mm
- Weight
6.8 kg
n.rel.
- Rotor blades
3
- Reversible rotation direction
Yes
- Speed levels
5
- Factory colour
White
- Material
Metal
- Height
585 mm
- Height-adjustable
Yes
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2296943 Helios Ventilatoren DVW 140 Ceiling fan (Ø x H) 1400 mm x 585 mm
Description
Robust metal design in classic design. Maintenance and non-radio interference-free closed motor suitable for continuous operation, white burned-in paint. Vibration-damping suspension for low-vibration running. Simple assembly by pre-assembled delivery: Only the three impeller blades need to be screwed on. Variable hanging height by delivery of a short and a long pendulum pipe. Speed can be controlled with 5-stage speed controller TSW 0.3 (accessories). TÜV certificate Accident prevention regulations (UVV) must provide a minimum distance of 2.3 m from the floor to the lower edge of the wing. Reverse air delivery direction. Direction of flow to the floor or ceiling can be determined by fixed connection or by means of reversing switch (DSEL 2 accessories). Minimum running voltage of 100 V is required for reversing operation (air delivery direction upwards).
