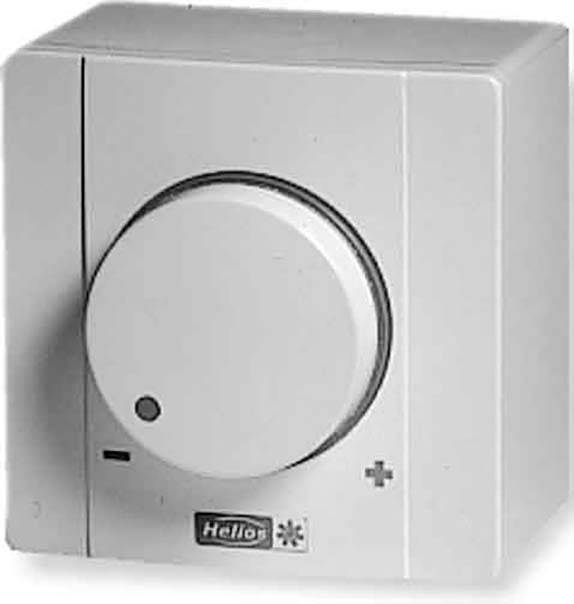

Helios Ventilatoren ESA 1 (aufputz) AC speed controller
EAN:
Part number:
Item no:
Output voltage (max.)
230 V
Product type
AC speed controller
Type
ESA 1 (aufputz)
Nominal current
1 A
Dim
(L x W) 65 mm x 80 mm
Technical specifications
- Number of phases: 1
- Base element without cover: Yes
- Operating mode: Rotary/push button
- Lighting: Illuminated when switched on
- Colour: white
- Height: 80 mm
- Power control infinitely variable: Yes
- With temperature sensor: no.
- Mounting type: Surface-mounted
- Type
ESA 1 (aufputz)
- Nominal current
1 A
- Output voltage (max.)
230 V
- Dim
(L x W) 65 mm x 80 mm
- Length
65 mm
- Width
80 mm
IP40
- Manufacturer part #
00238
- Weight
0
- UKCA
not relevant
- Product type
AC speed controller
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2294281 Helios Ventilatoren ESA 1 (aufputz) AC speed controller
Description
Electronic speed controller for continuous speed control of AC fans, phase control principle. Minimum output voltage adjustable via potentiometer, built-in on/off switch, unregulated switching output. Overload protection through micro fuse. Plastic housing, protection class IP 40.
This text is machine translated.
