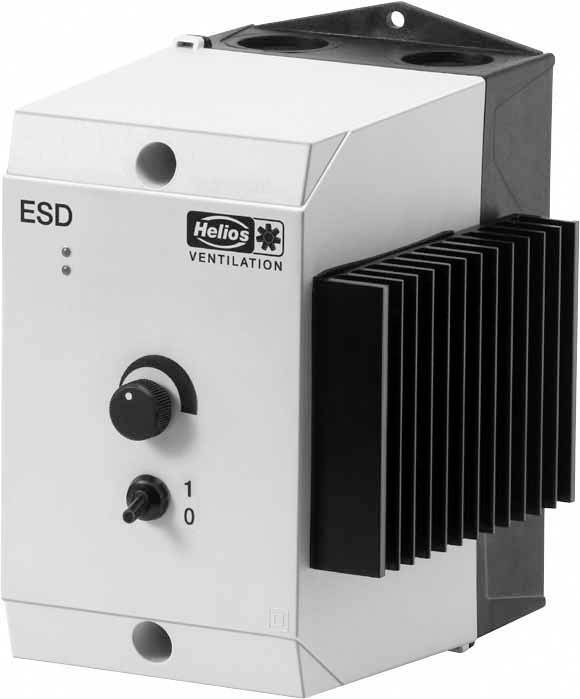

Helios Ventilatoren ESD 5 AC speed controller
EAN:
Part number:
Item no:
Output voltage (max.)
400 V
Product type
AC speed controller
Type
ESD 5
Nominal current
5 A
Type
With enclosure
Technical specifications
- Number of phases: 3
- Base element without cover: no.
- Operating mode: Rotary knob
- Lighting: None
- Colour: white
- Height: 160 mm
- Power control infinitely variable: Yes
- With temperature sensor: Yes
- Mounting type: Surface-mounted
- Switch contact: no.
- Type
ESD 5
- Nominal current
5 A
- Output voltage (max.)
400 V
- Type
With enclosure
- Dim
(L x W) 165 mm x 115 mm
- Length
165 mm
- Width
115 mm
IP65
- Manufacturer part #
00501
- UKCA
yes
- Product type
AC speed controller
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2294420 Helios Ventilatoren ESD 5 AC speed controller
Description
Comfortable continuous electronic speed controller for 3~ fans, which can be controlled via phase control by voltage reduction. State-of-the-art technology through the use of microcontrollers. Analogue control 0..10 V permitted by customer-side signal or electronic temperature controller EKW 6.3, parallel control of several control devices possible. Distribution of the ventilation capacity among several fan groups. With overload protection and motor full protection by monitoring the thermal contacts of the motor. Meets EMC requirements class B, no shielded cable between the device and the motor is necessary.
