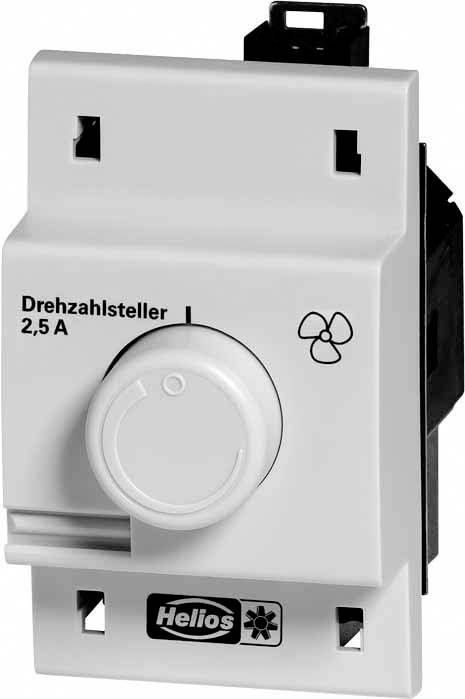

Helios Ventilatoren ESE 2,5 AC speed controller
EAN:
Part number:
Item no:
Output voltage (max.)
230 V
Product type
AC speed controller
Type
ESE 2,5
Nominal current
2 A
Type
35 mm rail mount
Technical specifications
- Number of phases: 1
- Base element without cover: no.
- Operating mode: Rotary knob
- Lighting: Illuminated when switched on
- Height: 85 mm
- Power control infinitely variable: Yes
- With temperature sensor: no.
- Mounting type: DIN rail
- Switch contact: no.
- Type
ESE 2,5
- Nominal current
2 A
- Output voltage (max.)
230 V
- Type
35 mm rail mount
- Dim
(L x W) 60 mm x 50 mm
- Length
60 mm
- Width
50 mm
IP20
- Manufacturer part #
01302
- UKCA
yes
- Product type
AC speed controller
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2297438 Helios Ventilatoren ESE 2,5 AC speed controller
Description
Electronic speed controller for continuous speed control of AC fans, phase angle principle, integrated on/off switch, unregulated switching output. Separately secured by fuse. For installation in switch and distribution cabinets (fits on 35 mm standard rail and 68 mm installation program). 50/60 Hz, minimum load 0.1 A. Protection class IP 20.
