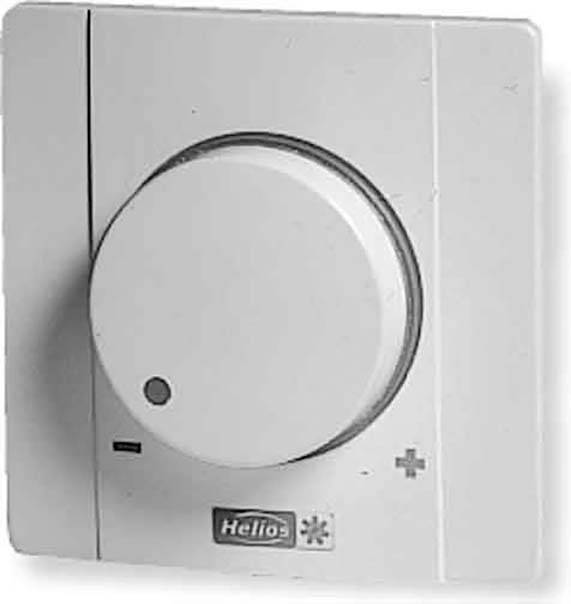

Helios Ventilatoren ESU 3 (Unterputz) AC speed controller 2.5 A
EAN:
Part number:
Item no:
Output voltage (max.)
230 V
Max. rotor current
2.5 A
Product type
AC speed controller
Type
ESU 3 (Unterputz)
Nominal current
2 A
Technical specifications
- Operating mode: Rotary/push button
- Lighting: Illuminated when switched on
- Colour: white
- Height: 80 mm
- Power control infinitely variable: Yes
- With temperature sensor: no.
- Mounting type: Flush-mounted
- Switch contact: Yes
- Type
ESU 3 (Unterputz)
- Nominal current
2 A
- Output voltage (max.)
230 V
- Max. rotor current
2.5 A
- Dim
(L x W) 21 mm x 80 mm
- Length
21 mm
- Width
80 mm
IP30
- Manufacturer part #
00237
- Factory colour
White
- UKCA
yes
- Product type
AC speed controller
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2297420 Helios Ventilatoren ESU 3 (Unterputz) AC speed controller 2.5 A
Description
Electronic speed controller for continuous speed control of AC fans, phase control principle. Minimum output voltage adjustable via potentiometer, built-in on/off switch, unregulated switching output. Overload protection through micro fuse. Front and rotary knob made of white plastic. Protection class IP 30, installation in 55er flush-mounted socket.
