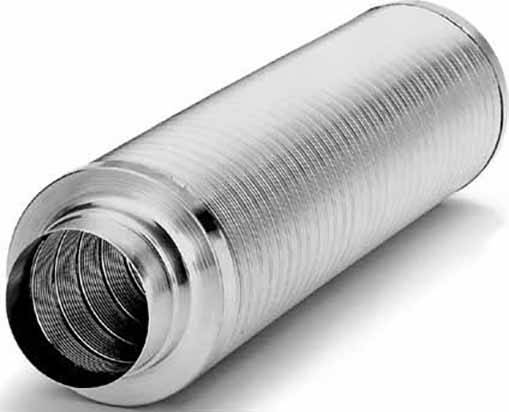

Helios Ventilatoren FSD 400 Silencer
EAN:
Part number:
Item no:
Technical specifications
- External diameter: 514 mm
- Damping 1000 Hz: 19 dB
- Damping 2000 Hz: 8 dB
- Damping 250 Hz: 5 dB
- Damping 500 Hz: 13 dB
- Flexible: Yes
- Interior diameter 400 mm
- Insulation thickness 50 mm
- Material outer tube: Aluminum
- Product type
Silencer
- Content
1 pc(s)
- Dim
(Ø x L) 400 mm x 1000 mm
- Length
1000 mm
- (Ø)
400 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2295981 Helios Ventilatoren FSD 400 Silencer
Description
Robust design made of flexible aluminum pipe. Perforated inner lining with resin-bonded sound insulation packing in approx. 50 mm thickness. Both sides with plug-in connectors, which can be inserted into the pipe or connected to the fan or pipe by means of fixing sleeve BM. The 4-fold pipe friction resistance must be taken into account when calculating the system.
