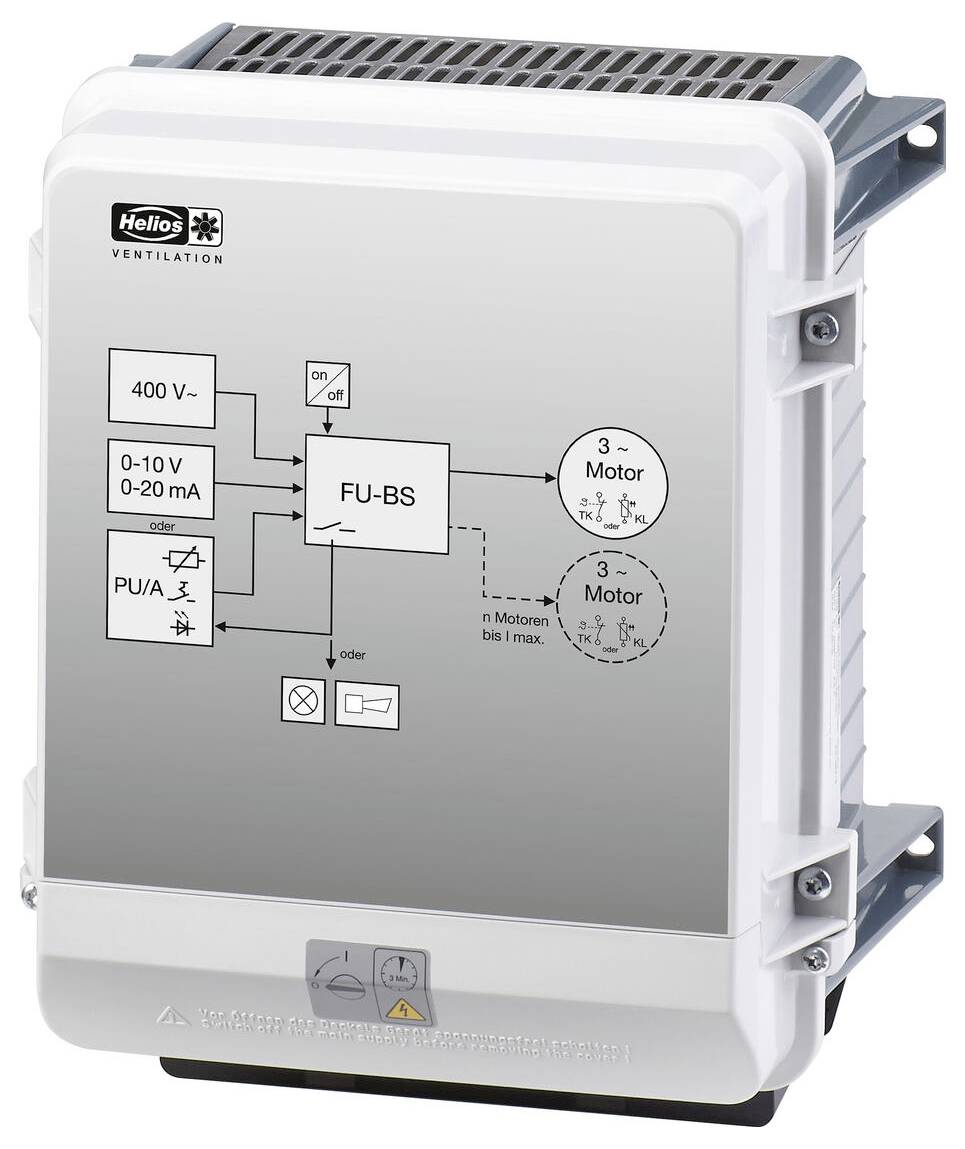

Helios Ventilatoren FU-BS 10,0 Frequency Inverters
EAN:
Part number:
Item no:
Technical specifications
- Height: 302 mm
- Width 250 mm
- Depth: 196 mm
- Protection class (IP) IP54
- Number of HW interfaces serial RS-485: 1
- Supports protocol for TCP/IP: No.
- Supports protocol for PROFIBUS: No.
- Supports protocol for CAN: No.
- Supports protocol for INTERBUS: No.
- Supports protocol for ASI: No.
- Supports protocol for KNX: No.
- Supports protocol for MODBUS: Yes
- Supports protocol for data highway: No.
- Supports protocol for DeviceNet: No.
- Supports protocol for SUCONET: No.
- Supports protocol for LON: No.
- Supports protocol for SERCOS: No.
- Supports protocol for PROFINET IO: No.
- Supports protocol for PROFINET CBA: No.
- Supports protocol for FOUNDATION Fieldbus: No.
- Supports protocol for Ethernet/IP: No.
- Supports protocol for AS-Interface Safety at Work: No.
- Supports protocol for DeviceNet Safety: No.
- Supports protocol for INTERBUS-Safety: No.
- Supports protocol for PROFIsafe: No.
- Supports protocol for SafetyBUS p: No.
- Supports protocol for other bus systems: No.
- Mains voltage 208..480 V
- Network frequency: 50~60 Hz
- Input phase number: 3
- Output phase number: 3
- Maximum output frequency: 50 Hz
- Rated output current I2N 10 A
- With control element: No.
- For industrial use: Yes
- For use in the home or commercial sector: Yes
- Supports protocol for BACnet: No.
- With optical interface: No.
- With PC connection: No.
- Integrated braking chopper: Yes
- Type of converter: Other
- Product type
Frequency Inverters
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3545769 Helios Ventilatoren FU-BS 10,0 Frequency Inverters
Description
Frequency converter in basic version with integrated all-pole effective sine filter. For controlling the speed of one or more fans. The permissible number of fans is derived from the maximum FU current. The speed is specified via the 0-10 V control signal (e.g. potentiometer PU/PA, accessories). Cable length possible over 10 m between FU-BS and fan. No additional EMC-shielding of the electrical wires necessary. The fans including the motor do not require any special EMC precautions for frequency converter operation. The FU-BS is fixed to its nominal current. When using the frequency converter with integrated sine-wave filter conventional standard fans/motors can be used.
