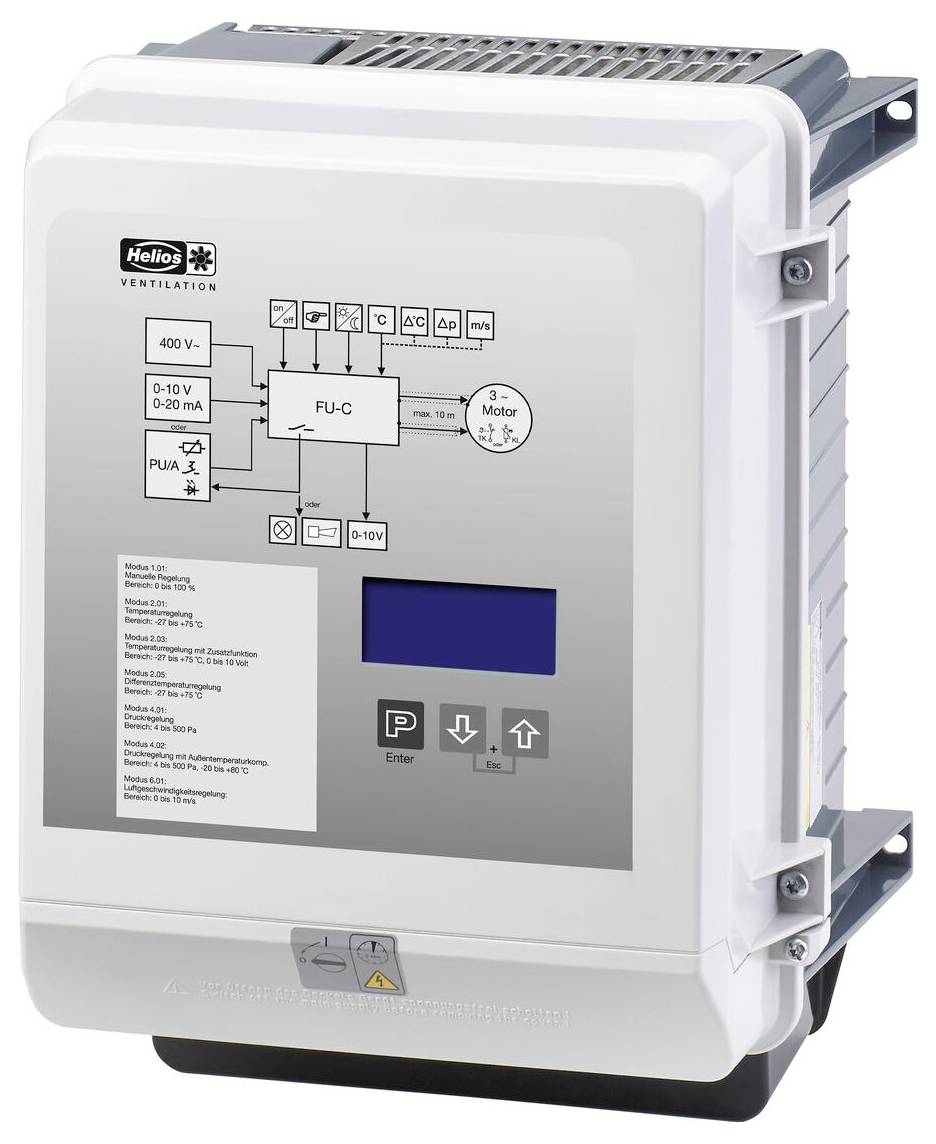

Helios Ventilatoren FU-C 12 Frequency Inverters
EAN:
Part number:
Item no:
Technical specifications
- Height: 302 mm
- Width 250 mm
- Depth: 196 mm
- Protection class (IP) IP54
- Number of HW interfaces serial RS-485: 1
- Supports protocol for TCP/IP: No.
- Supports protocol for PROFIBUS: No.
- Supports protocol for CAN: No.
- Supports protocol for INTERBUS: No.
- Supports protocol for ASI: No.
- Supports protocol for KNX: No.
- Supports protocol for MODBUS: Yes
- Supports protocol for data highway: No.
- Supports protocol for DeviceNet: No.
- Supports protocol for SUCONET: No.
- Supports protocol for LON: No.
- Supports protocol for SERCOS: No.
- Supports protocol for PROFINET IO: No.
- Supports protocol for PROFINET CBA: No.
- Supports protocol for FOUNDATION Fieldbus: No.
- Supports protocol for Ethernet/IP: No.
- Supports protocol for AS-Interface Safety at Work: No.
- Supports protocol for DeviceNet Safety: No.
- Supports protocol for INTERBUS-Safety: No.
- Supports protocol for PROFIsafe: No.
- Supports protocol for SafetyBUS p: No.
- Supports protocol for other bus systems: No.
- Mains voltage 208..480 V
- Network frequency: 50~60 Hz
- Input phase number: 3
- Output phase number: 3
- Maximum output frequency: 50 Hz
- Rated output current I2N 12 A
- With control element: Yes
- Use in industrial areas permitted: No.
- Use in the home or commercial sector permitted: No.
- Supports protocol for BACnet: No.
- With optical interface: No.
- With PC connection: No.
- Integrated braking chopper: Yes
- Type of converter: Other
- Product type
Frequency Inverters
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3543677 Helios Ventilatoren FU-C 12 Frequency Inverters
Description
Frequency converter in Comfort-version without sine-filter for controlling the speed of a single fan. Including display and three control buttons for setting the fan and control parameters. Parameterisation and control options via Modbus. With integrated, full-fledged control system for temperature, pressure and air speed. The necessary sensors LDF 500, LGF 10. LT Can be supplied as an accessory. The speed is specified via the 0-10 V control signal (e.g. potentiometer PU/PA, accessories) or through direct input on the display. Cable length between FU-C and fan max. 10 m with shielded cable. The fan must be designed for operation with a frequency converter (EMC-compatible fan/motor, possibly special version). For FU-C operation (without sine-wave filter) the frequency converter compatibility must be specified when ordering a fan.
