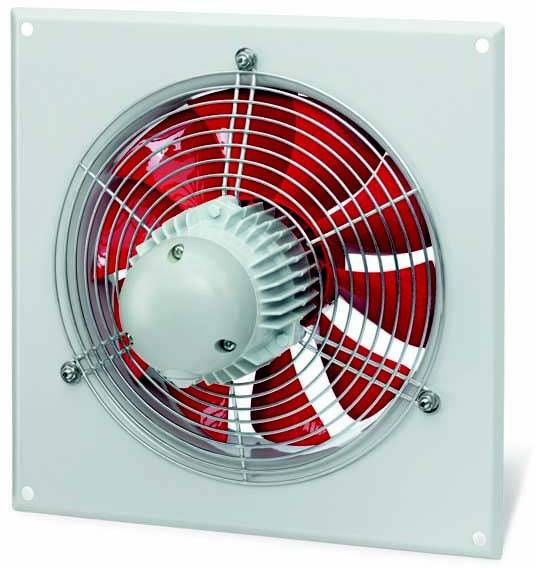

Helios Ventilatoren HQD 400/4/4 Wall fan (Ø) 400 mm
EAN:
Part number:
Item no:
Technical specifications
- Design: Ventilation
- Speed: 1325 rpm
- Conveying medium temperature: -30..60 °C.
- Nominal diameter 400 mm
- Mains frequency 50 Hz
- Protection class IP55
- Shutter flap: None
- Volume flow: 3920 m³/h
- Product type
Wall fan
- Operating voltage
400 V
- Switching stages
2
- (Ø)
400 mm
- Air flow rate
3920 m³/h
- Rotational speed
1325 U/min
- Dim
(Ø) 400 mm
- Weight
20 kg
n.rel.
- Factory colour
White
- Material
Steel
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2298094 Helios Ventilatoren HQD 400/4/4 Wall fan (Ø) 400 mm
Description
Axial high-performance fan with square mounting plate, inlet nozzle, directly driven. Square mounting plate with molded nozzle made of galvanized sheet steel, double painted, color papyrus white. Impeller with high-performance characteristics with profiled plastic blades, aerodynamically optimized for application, dynamically balanced. Three-phase short-circuit rotor motor two-speed with star-delta circuit, closed design, maintenance-free, sealed, low-noise ball bearings with long-term lubrication.
