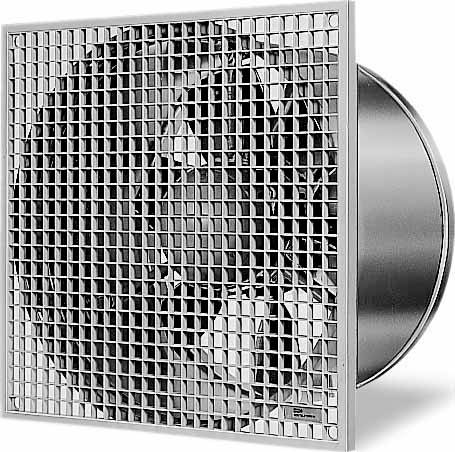

Image similar
Image similar
Helios Ventilatoren HSD 315/4 TK Wall fan (Ø) 315 mm
EAN:
Part number:
Item no:
Technical specifications
- Design: Ventilation
- Speed: 1330 rpm
- Conveying medium temperature: -30..60 °C.
- Nominal diameter 315 mm
- Mains frequency 50 Hz
- Protection class IP55
- Shutter flap: None
- Volume flow: 1960 m³/h.
- Product type
Wall fan
- Operating voltage
400 V
- (Ø)
315 mm
- Rotational speed
1330 U/min
- Dim
(Ø) 315 mm
- Weight
8 kg
n.rel.
- Air discharge
1960 m³/h
- Material
Steel
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2297471 Helios Ventilatoren HSD 315/4 TK Wall fan (Ø) 315 mm
Description
Axial high-performance fan tube sleeve cylindrical, smooth ends, directly driven. Tube sleeve made of galvanized sheet steel, with two reinforcing beads running on the circumference and protective grillee made of plastic. Impeller with high-performance characteristics with profiled plastic blades, aerodynamically optimized for application, dynamically balanced. Three-phase short-circuit rotor motor through voltage reduction Speed controllable, thermal contacts, closed design, maintenance-free, sealed, low-noise ball bearings with long-term lubrication.
This text is machine translated.
