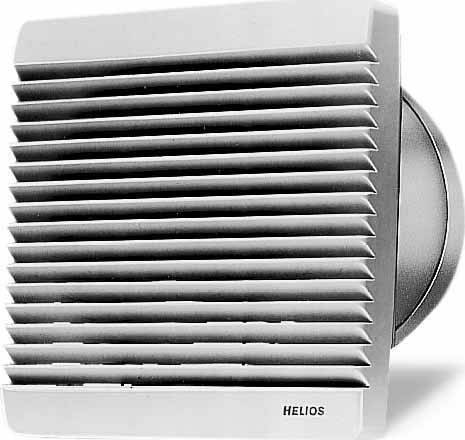

Helios Ventilatoren HSW 250/2 TK Wall fan (Ø) 250 mm
EAN:
Part number:
Item no:
Technical specifications
- Design: Ventilation
- Speed 2710 rpm
- Conveying medium temperature: -30..40 °C.
- Nominal diameter 250 mm
- Mains frequency 50 Hz
- Protection class IP55
- Shutter flap: None
- Volume flow: 2070 m³/h
- Product type
Wall fan
- Operating voltage
230 V
- (Ø)
250 mm
- Air flow rate
2070 m³/h
- Rotational speed
2710 U/min
- Dim
(Ø) 250 mm
- Weight
6.5 kg
n.rel.
- Reversible rotation direction
Yes
- Rotational speed (max.)
2710 U/min
- Air discharge
2070 m³/h
- Material
Steel
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2296474 Helios Ventilatoren HSW 250/2 TK Wall fan (Ø) 250 mm
Description
Axial high-performance fan tube sleeve cylindrical, smooth ends, directly driven. Tube sleeve made of galvanized sheet steel, with two reinforcing beads running on the circumference and protective grillee made of plastic. Impeller with high-performance characteristics with profiled plastic blades, aerodynamically optimized for application, dynamically balanced. Single-phase AC capacitor motor, closed design, maintenance-free, with thermal contacts built into the winding, speed-controlled by voltage reduction, sealed, low-noise ball bearings with long-term lubrication, reverse-able.
