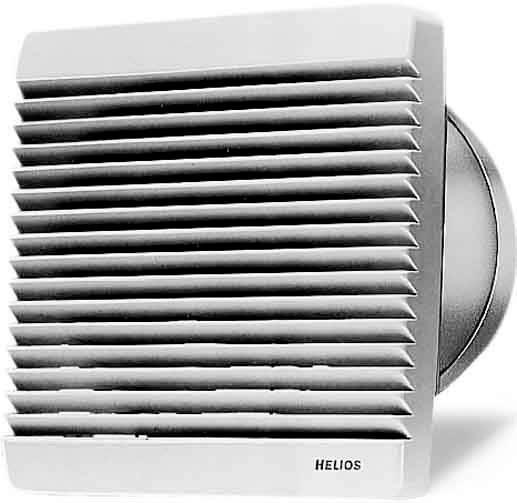

Helios Ventilatoren HSW 250/6 TK Wall fan Wall mounting option, Dimmable
EAN:
Part number:
Item no:
Technical specifications
- Design: Ventilation
- Speed 930 rpm
- Conveying medium temperature: -30..40 °C.
- Nominal diameter 250 mm
- Mains frequency 50 Hz
- Protection class IP55
- Shutter flap: None
- Volume flow 660 m³/h
- Product type
Wall fan
- Operating voltage
230 V
- Rotational speed
930 U/min
- Fan features
Wall mounting option
Dimmable
- Weight
6.5 kg
n.rel.
- Reversible rotation direction
Yes
- Air discharge
660 m³/h
- Material
Steel
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2297439 Helios Ventilatoren HSW 250/6 TK Wall fan Wall mounting option, Dimmable
Description
Axial high-performance fan tube sleeve cylindrical, smooth ends, directly driven. Tube sleeve made of galvanized sheet steel, with two reinforcing beads running on the circumference and protective grillee made of plastic. Impeller with high-performance characteristics with profiled plastic blades, aerodynamically optimized for application, dynamically balanced. Single-phase AC capacitor motor, closed design, maintenance-free, with thermal contacts built into the winding, speed-controlled by voltage reduction, sealed, low-noise ball bearings with long-term lubrication, reverse-able.
This text is machine translated.
This text is machine translated.
