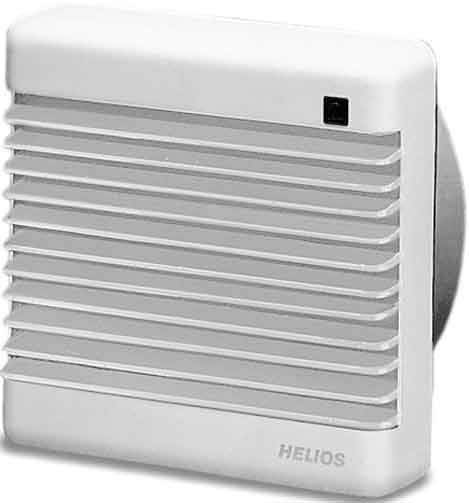

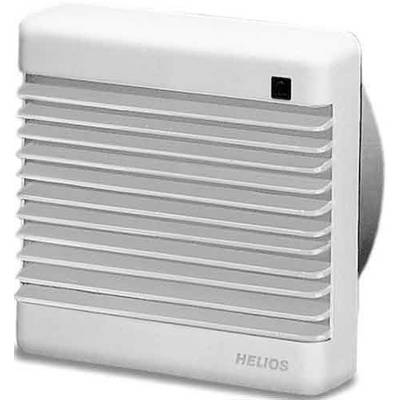

Helios Ventilatoren HVR 150/2 E Wall and window fan 230 V 260 m³/h 150 mm
EAN:
Part number:
Item no:
Technical specifications
- Design: Ventilation
- Conveying medium temperature: -20..40 °C.
- Nominal diameter 150 mm
- Mains frequency 50 Hz
- Product type
Wall and window fan
- Nominal voltage
230 V
- Rotational speed
1800 U/min
- Air flow rate
260 m³/h
- Suitable for pipe Ø
150 mm
- Ventilation features
Adjustable
IP44
- Factory colour
White
- Material
Plastic
- Weight
0.00
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2293296 Helios Ventilatoren HVR 150/2 E Wall and window fan 230 V 260 m³/h 150 mm
Description
Flush-mounted room fan for installation in walls, shafts and windows. Can be used in openings with NW 150 for ventilation of small to medium rooms. Plastic housing with louvered grillee to cover the suction opening. High-performance axial impeller, 8-blades made of plastic. Single-phase AC capacitor motor, closed design, maintenance-free, with thermal contacts built into the winding, speed-controlled by voltage reduction, sealed, low-noise ball bearings with long-term lubrication, cannot be reversed.
