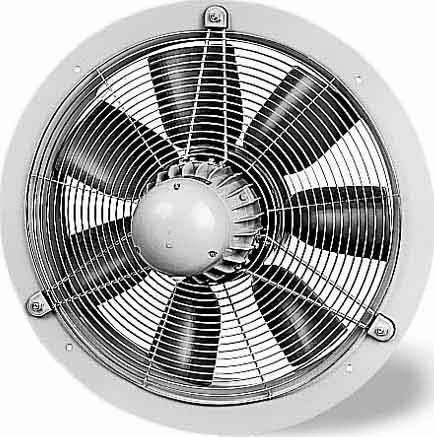

Helios Ventilatoren HWW 315/4 TK Wall fan (Ø) 315 mm
EAN:
Part number:
Item no:
Technical specifications
- Design: Ventilation
- Speed: 1390 rpm
- Conveying medium temperature: -30..60 °C.
- Nominal diameter 315 mm
- Mains frequency 50 Hz
- Protection class IP55
- Shutter flap: None
- Volume flow: 2080 m³/h
- Product type
Wall fan
- Operating voltage
230 V
- (Ø)
315 mm
- Rotational speed
1390 U/min
- Dim
(Ø) 315 mm
- Weight
8 kg
n.rel.
- Reversible rotation direction
Yes
- Factory colour
White
- Air discharge
2080 m³/h
- Material
Steel
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2297473 Helios Ventilatoren HWW 315/4 TK Wall fan (Ø) 315 mm
Description
Axial high-performance fan with wall mounting ring, inlet nozzle, directly driven. Wall ring made of galvanized sheet steel, double painted, color papyrus white, nozzle with protective grillee on the suction side. Connection box on the motor. Impeller with high-performance characteristics with profiled plastic blades, aerodynamically optimized for application, dynamically balanced. Single-phase AC capacitor motor, closed design, maintenance-free, with thermal contacts built into the winding, speed-controlled by voltage reduction, sealed, low-noise ball bearings with long-term lubrication, reverse-able.
