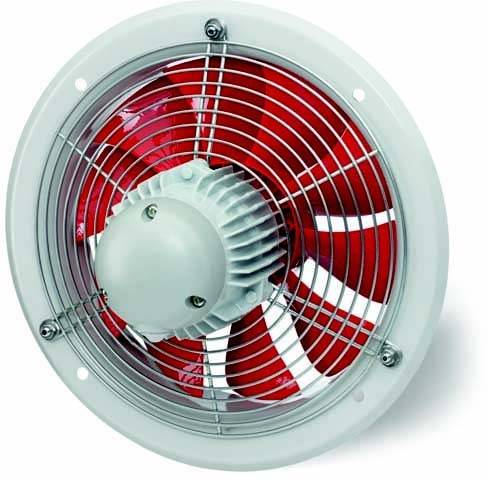

Helios Ventilatoren HWW 450/4 Wall fan (Ø) 450 mm
EAN:
Part number:
Item no:
Technical specifications
- Design: Ventilation
- Speed: 1380 rpm
- Conveying medium temperature: -30..60 °C.
- Nominal diameter 450 mm
- Mains frequency 50 Hz
- Protection class IP55
- Shutter flap: None
- Volume flow 5770 m³/h
- Product type
Wall fan
- Operating voltage
230 V
- (Ø)
450 mm
- Rotational speed
1380 U/min
- Dim
(Ø) 450 mm
- Weight
15.5 kg
n.rel.
- Reversible rotation direction
Yes
- Air discharge
5770 m³/h
- Material
Plastic
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2296542 Helios Ventilatoren HWW 450/4 Wall fan (Ø) 450 mm
Description
Axial high-performance fan with wall mounting ring, inlet nozzle, directly driven. Wall ring made of galvanized sheet steel, double painted, color papyrus white, nozzle with protective grillee on the suction side. Connection box on the motor. Impeller with high-performance characteristics with profiled plastic blades, aerodynamically optimized for application, dynamically balanced. Single-phase AC capacitor motor, closed design, maintenance-free, with thermal contacts built into the winding, speed-controlled by voltage reduction, sealed, low-noise ball bearings with long-term lubrication, reverse-able.
