Helios Ventilatoren KD 250/4/50/30 EX Ceiling fan
EAN:
Part number:
Item no:
Technical specifications
- Installation location: Channel
- Frequency: 50 Hz
- Channel width 500 mm
- Channel height 300 mm
- Air quantity unloaded: 2300 m³/h.
- Medium temperature: -40..40 °C.
- Protection class: IP44
- Product type
Ceiling fan
- Operating voltage
400 V
- Air flow rate
2300 m³/h
- Weight
21 kg
n.rel.
- Air discharge
2300 m³/h
- Material
Steel
- Height
300 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2297474 Helios Ventilatoren KD 250/4/50/30 EX Ceiling fan
Description

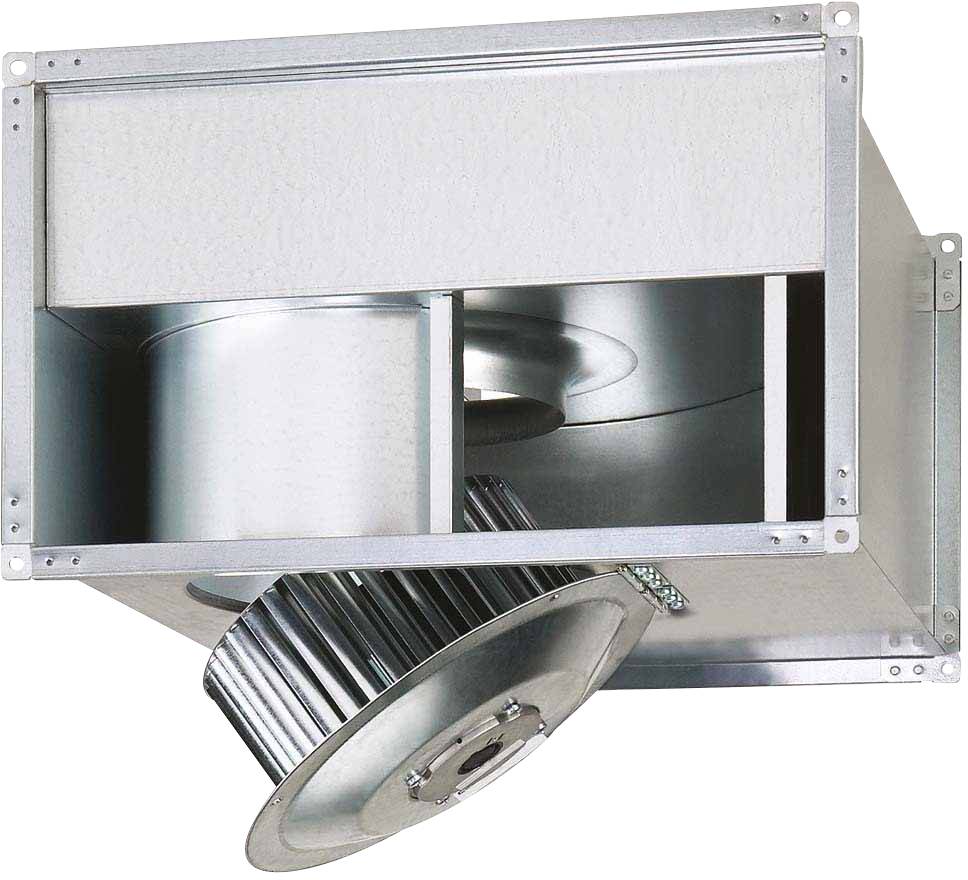

Channel radial fan for direct mounting in a rectangular duct system, explosion-protected according to ATEX. Housing made of galvanized sheet steel with channel flange profiles standardized on both sides, space-saving design, service-friendly through swiveling motor impeller unit. Forward-curved drum impeller made of galvanized steel, good efficiency, low noise, aerodynamically optimized spiral housing, inlet via nozzle. Impeller motor unit dynamically balanced. Drive: Three-phase external rotor motor, explosion-protected according to ATEX, closed design, maintenance-free, sealed, low-noise ball bearings with long-term lubrication, installed PTC thermistor. When connecting the PTC thermistors to the MSA tripping unit, speed control is permitted (however, the minimum voltage must not be less than 100 V).
