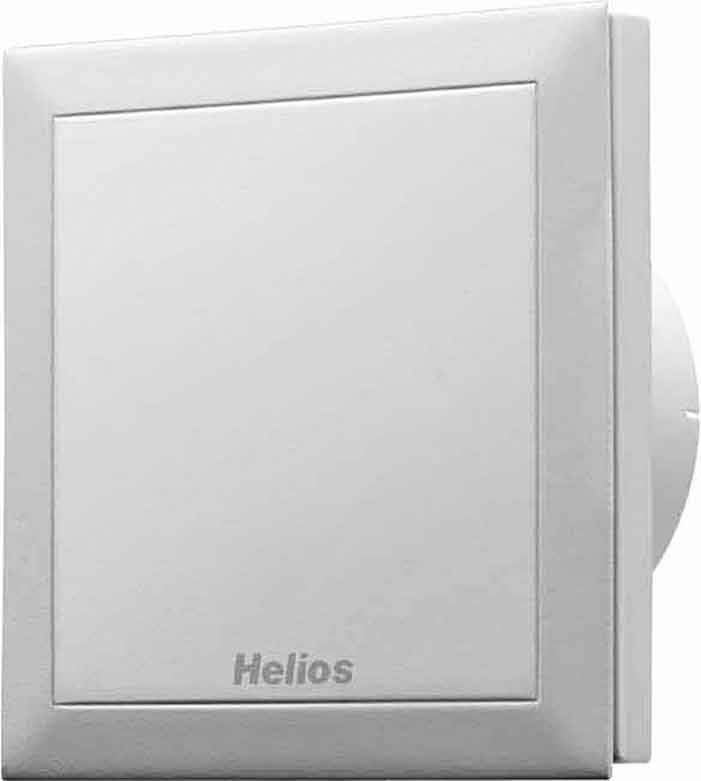

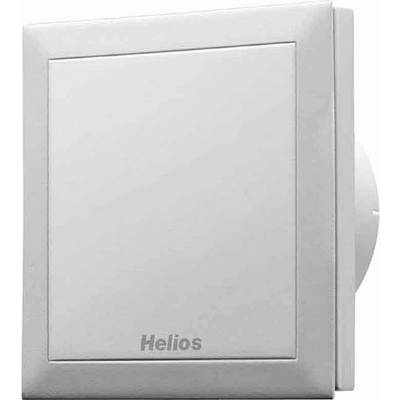

Helios Ventilatoren M1/100 F Small space fan 230 V 90 m³/h 100 mm
EAN:
Part number:
Item no:
Technical specifications
- Design: Axial
- Mounting type: Surface-mounted
- Nominal width 100 mm
- Mains frequency 50 Hz
- Direction: Bleeding
- Composition: With moisture flow control
- Product type
Small space fan
- Nominal voltage
230 V
9 W
- Air flow rate
90 m³/h
- Suitable for pipe Ø
100 mm
- Ventilation features
With time-delay relay
IP45
- Factory colour
White
- Material
Plastic
- Dim
(W x H x D) 140 x 140 x 96 mm
- Weight
660 g
- Width
140 mm
- Height
140 mm
- Depth
96 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2293277 Helios Ventilatoren M1/100 F Small space fan 230 V 90 m³/h 100 mm
Conformity certificate
Conformity certificate 2293277 Helios Ventilatoren M1/100 F Small space fan 230 V 90 m³/h 100 mm
Description
Small fan MiniVent M1, with 2 power levels ( 90/75 m³/h) and humidity flow control. Delay time can be set to approx. 6, 12, 18, 24 min. The electronic function can be set optionally to the high or low power stage. With its excellent design, MiniVent M 1 fits harmoniously everywhere - even in sophisticated rooms. The closed, shapely facade completely avoids the insight into the dirty fan opening. Fitted with a tightly closing backflow flap as standard. Thanks to the new ultrasilence technology, the noise level is 25 dB(A) at 75 m³/h volume flow. Universally applicable for the ventilation of bath, WC and other small rooms.
