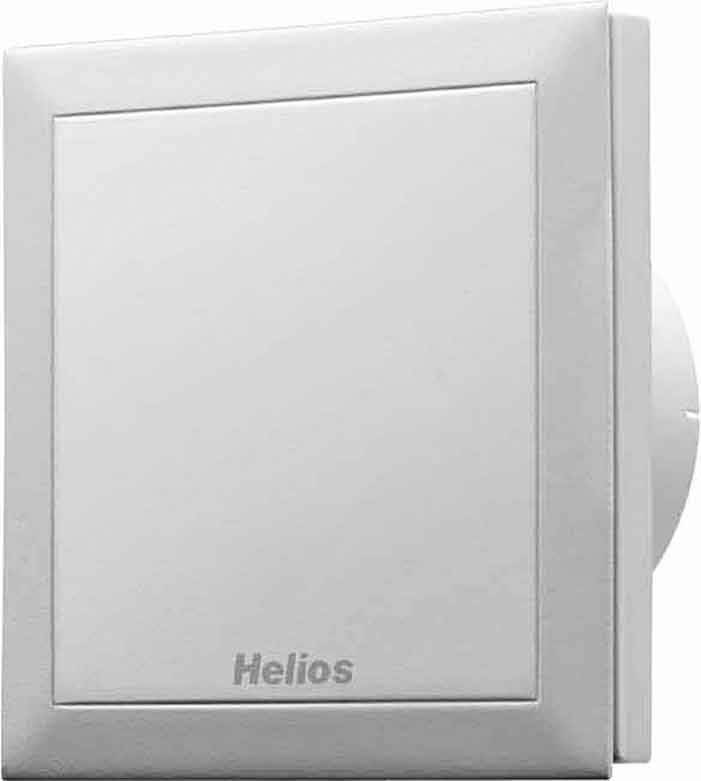

Helios Ventilatoren M1/100 Small space fan 230 V 90 m³/h 100 mm
EAN:
Part number:
Item no:
Technical specifications
- Design: Axial
- Mounting type: Surface-mounted
- Nominal width 100 mm
- Mains frequency 50 Hz
- Direction: Bleeding
- Composition: Standard
- Product type
Small space fan
- Nominal voltage
230 V
9 W
- Air flow rate
90 m³/h
- Suitable for pipe Ø
100 mm
- Noise emission (max.)
25 dBa
IP45
- Factory colour
White
- Material
Plastic
- Dim
(W x H x D) 140 x 140 x 96 mm
- Width
140 mm
- Height
140 mm
- Depth
96 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2297897 Helios Ventilatoren M1/100 Small space fan 230 V 90 m³/h 100 mm
Conformity certificate
Conformity certificate 2297897 Helios Ventilatoren M1/100 Small space fan 230 V 90 m³/h 100 mm
Description
MiniVent M1 small fan, standard model with 2 power levels ( 90/75 m³/h) with the excellent design, MiniVent M 1 fits in harmoniously everywhere - even in demanding designed rooms. The closed, shapely facade completely avoids the insight into the dirty fan opening. Fitted with a tightly closing backflow flap as standard. Thanks to the new ultrasilence technology, the noise level is 25 dB(A) at 75 m³/h volume flow. Universally applicable for the ventilation of bath, WC and other small rooms.
