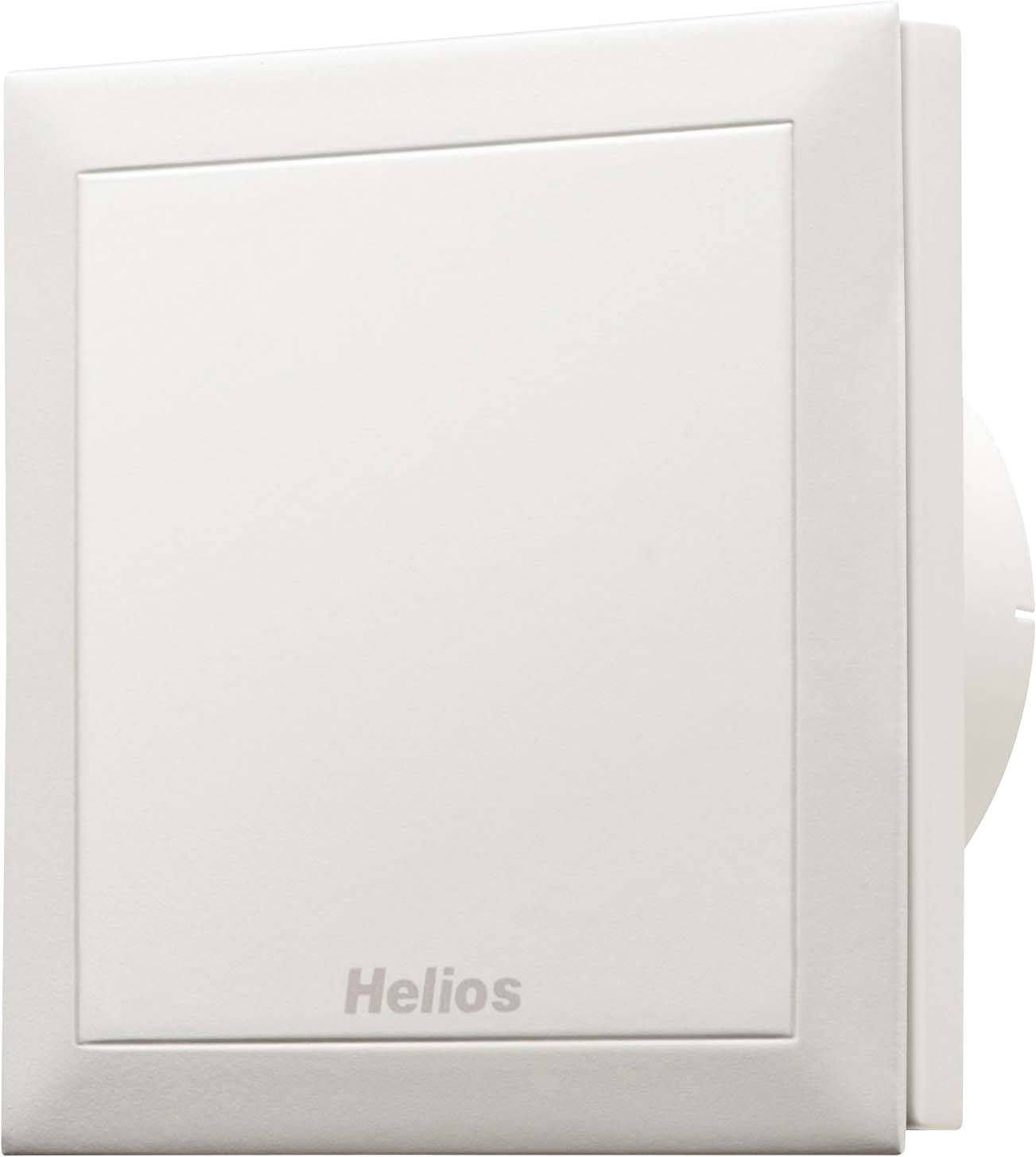

Helios Ventilatoren M1/120 Small space fan 230 V 170 m³/h 120 mm
EAN:
Part number:
Item no:
Technical specifications
- Design: Axial
- Mounting type: Surface-mounted
- Nominal width 120 mm
- Mains frequency 50 Hz
- Direction: Bleeding
- Composition: Standard
- Product type
Small space fan
- Nominal voltage
230 V
13 W
- Air flow rate
170 m³/h
- Suitable for pipe Ø
120 mm
IP45
- Factory colour
White
- Material
Plastic
- Dim
(Ø x H) 11.8 cm x 176 mm
- Width
176 mm
- Height
176 mm
- (Ø)
11.8 cm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2294283 Helios Ventilatoren M1/120 Small space fan 230 V 170 m³/h 120 mm
Conformity certificate
Conformity certificate 2294283 Helios Ventilatoren M1/120 Small space fan 230 V 170 m³/h 120 mm
Description
MiniVent M1/120 small fan, standard model with 2 power levels ( 170/150 m³/h) with the excellent design, MiniVent M 1 fits in perfectly everywhere - even in demanding rooms. The closed, shapely facade completely avoids the insight into the dirty fan opening. Fitted with a tightly closing backflow flap as standard. Thanks to the new ultrasilence technology, the noise level is 32 dB(A) at 150 m³/h volume flow. Universally applicable for the ventilation of bath, WC and other small rooms.
