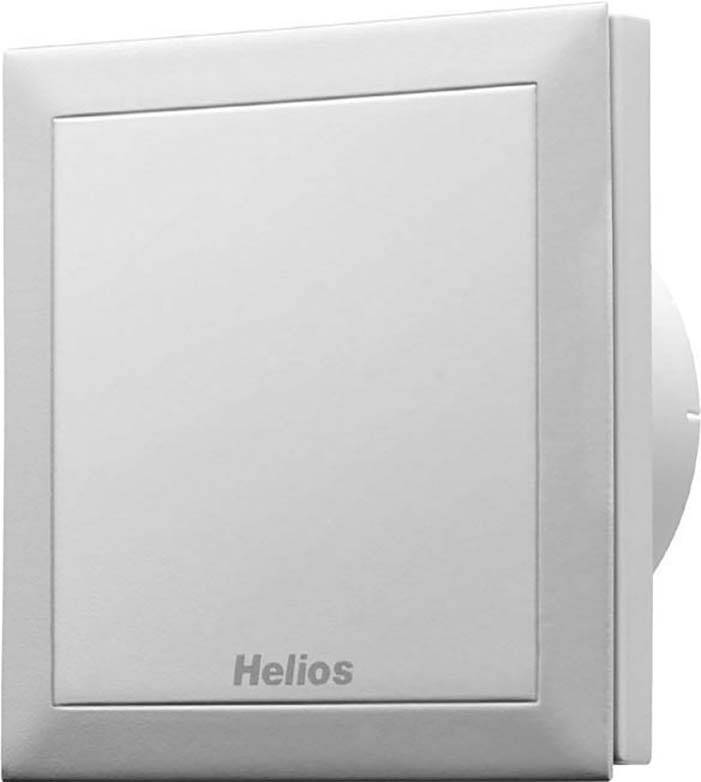

Helios Ventilatoren M1150 Small space fan 230 V 260 m³/h 150 mm
EAN:
Part number:
Item no:
Technical specifications
- Design: Axial
- Mounting type: Wall/pipe mounting
- Nominal diameter 150 mm
- Mains frequency 50 Hz
- Direction: Bleeding
- Composition: Standard
- Product type
Small space fan
- Nominal voltage
230 V
- Air flow rate
260 m³/h
- Suitable for pipe Ø
150 mm
- Noise emission (max.)
35 dBa
IP45
- Factory colour
White
- Material
Plastic
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2296924 Helios Ventilatoren M1150 Small space fan 230 V 260 m³/h 150 mm
Description
Mini fan MiniVent M1/150 with energy-saving EC motor, standard model with 2 power stages (260/220 m³/h) . With its excellent design, MiniVent M 1 fits harmoniously everywhere - even in sophisticated rooms. The closed, shapely facade completely avoids the insight into the dirty fan opening. Fitted with a tightly closing backflow flap as standard. Thanks to the new ultrasilence technology, the noise level is 35 dB(A) at 220 m³/h volume flow. Universally applicable for the ventilation of bath, WC and other rooms.
