Buy Helios Ventilatoren RDS 11 Speed regulator

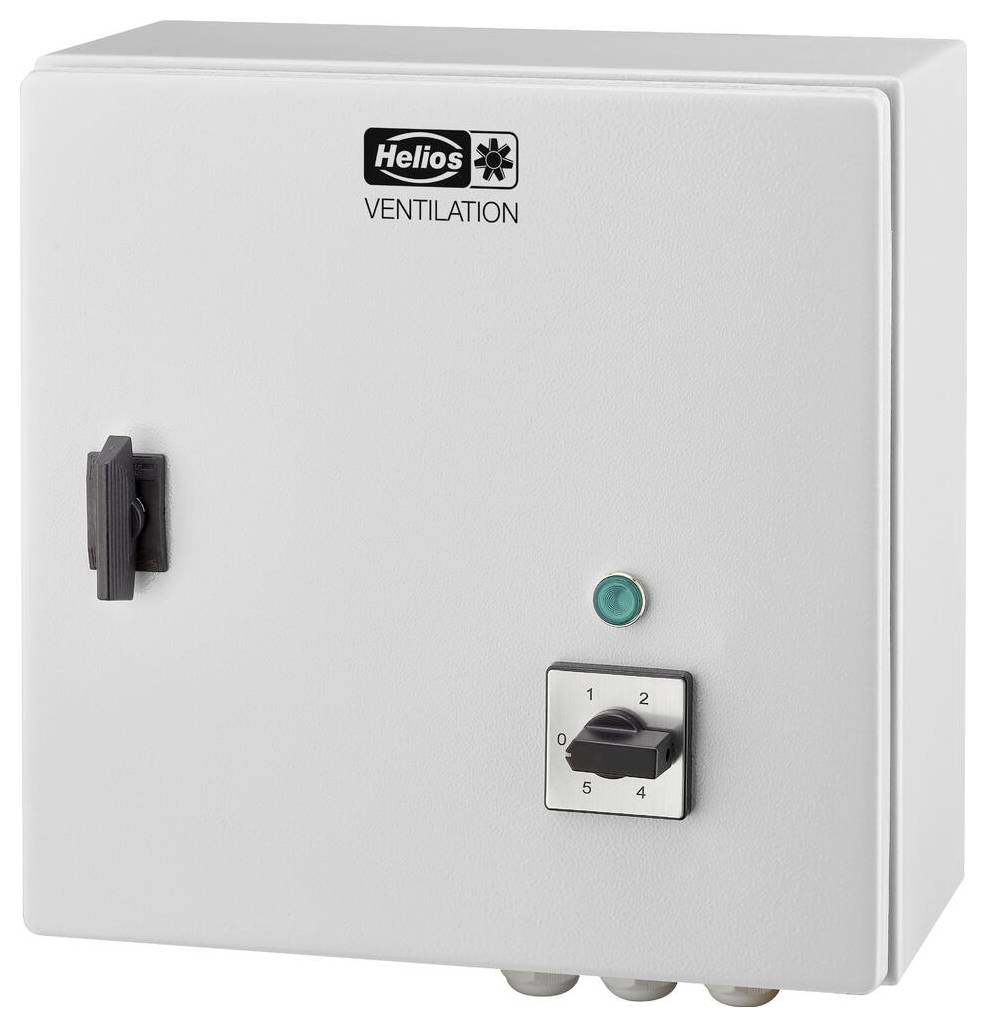

'Helios Ventilation control box with a selector switch and a green button, used for managing ventilation system settings.'

Image similar

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Height: 400 mm
Width 300 mm
Depth: 200 mm
Mounting type: Surface-mounted
Colour: Other
Protection class (IP) IP54
Nominal current 11 A
With temperature sensor: No.
Control mode: Rotary knob
Lighting: Control (off)
Continuous power regulation: No.
Number of steps: 5
Switch contact: No.

Product type: Speed regulator

Content: 1 pc(s)

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3545453 Helios Ventilatoren RDS 11 Speed regulator

Description

5-speed controller for connecting thermal contacts (wired to clipboard) one/more fans up to nominal load. With integrated release device and control lamp. Re-commissioning after fault via 0 position. Switchable voltages 0/80/140/200/280/400 volts. Ambient temperature 40 °C max. Wall-mounted plastic housing, protection class IP 54.

This text is machine translated.
