Buy HellermannTyton 115-00004 LR55R-PA66-YE-Q1 Cable tie 196 mm 4.80 mm Yellow Releasable, Heat-resistant 25 pc(s)

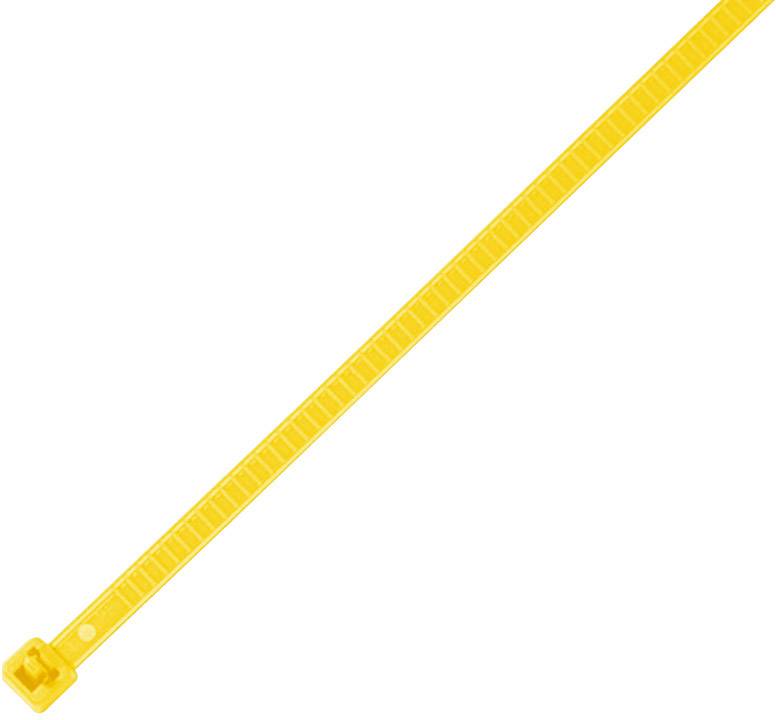

Yellow cable tie in close-up, horizontally positioned.

Image similar

Five cable ties in different colours: black, yellow, red, green, and white, lying parallel and side by side on a white background.

A technical drawing shows a spring marked with 'B'. The spring is bounded by straight lines on both sides.

1/3

Image similar

Product type

Cable tie

Content

25 pc(s)

Cable tie length

196 mm

Cable tie width

4.80 mm

Cable tie features

Releasable

Heat-resistant

Datasheet (PDF)

Fast track dispatch on Tue, 15 Sep

140 Set(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Set(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number (Package size 25 pc(s))

Set(s)

Total (€ 0.27 / piece)

€ 6.71

plus VAT.

Report legal concerns

Highlights & Details

HellermannTyton 115-00004 LR55R-PA66-YE-Q1 Cable tie 196 mm 4.80 mm Yellow Releasable, Heat-resistant 25 pc(s)

Technical specifications

Dim: (L x B) 195 x 4.7 mm

Product type: Cable tie

Content: 25 pc(s)

Factory colour: Yellow

Cable tie length: 196 mm

Cable tie width: 4.80 mm

Cable tie features: Releasable
Heat-resistant

Gearing: Inside

Max. temperature: +85 °C

Min. temperature: -40 °C

Halogen-free: Yes

Material: Polyamide 6.6

Fire protection properties: UL94V2

Max. bundle diameter: 50 mm

Manufacturer part #: 115-00004

Material (details): PA66

Dimensions: (L x B) 195 x 4.7 mm

Minimum holding force: 245 N

RoHS-compliant: Yes

Type: LR55R-PA66-YE-Q1

Operating temperature: -40 - +85°C, short-term to +150°C (500 h)

Bundle diameter: 50 mm

Temperature range: -40 - +85, short term - +105 (500 hrs) °C

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 545568 HellermannTyton 115-00004 LR55R-PA66-YE-Q1 Cable tie 196 mm 4.80 mm Yellow Releasable, Heat-resistant 25 pc(s)

User & Safety Instructions

User & Safety Instructions 545568 HellermannTyton 115-00004 LR55R-PA66-YE-Q1 Cable tie 196 mm 4.80 mm Yellow Releasable, Heat-resistant 25 pc(s)

Description

The releasable ties LR55 are easy to install and release. They are available in various colours and are, therefore, especially suitable for identification. The external teeth of the cable ties in the LR55 series avoids damage to the cable bundle.This cable tie is suitable for all types of bundling, including packaging, for logistical identification and for pre-assembly.
