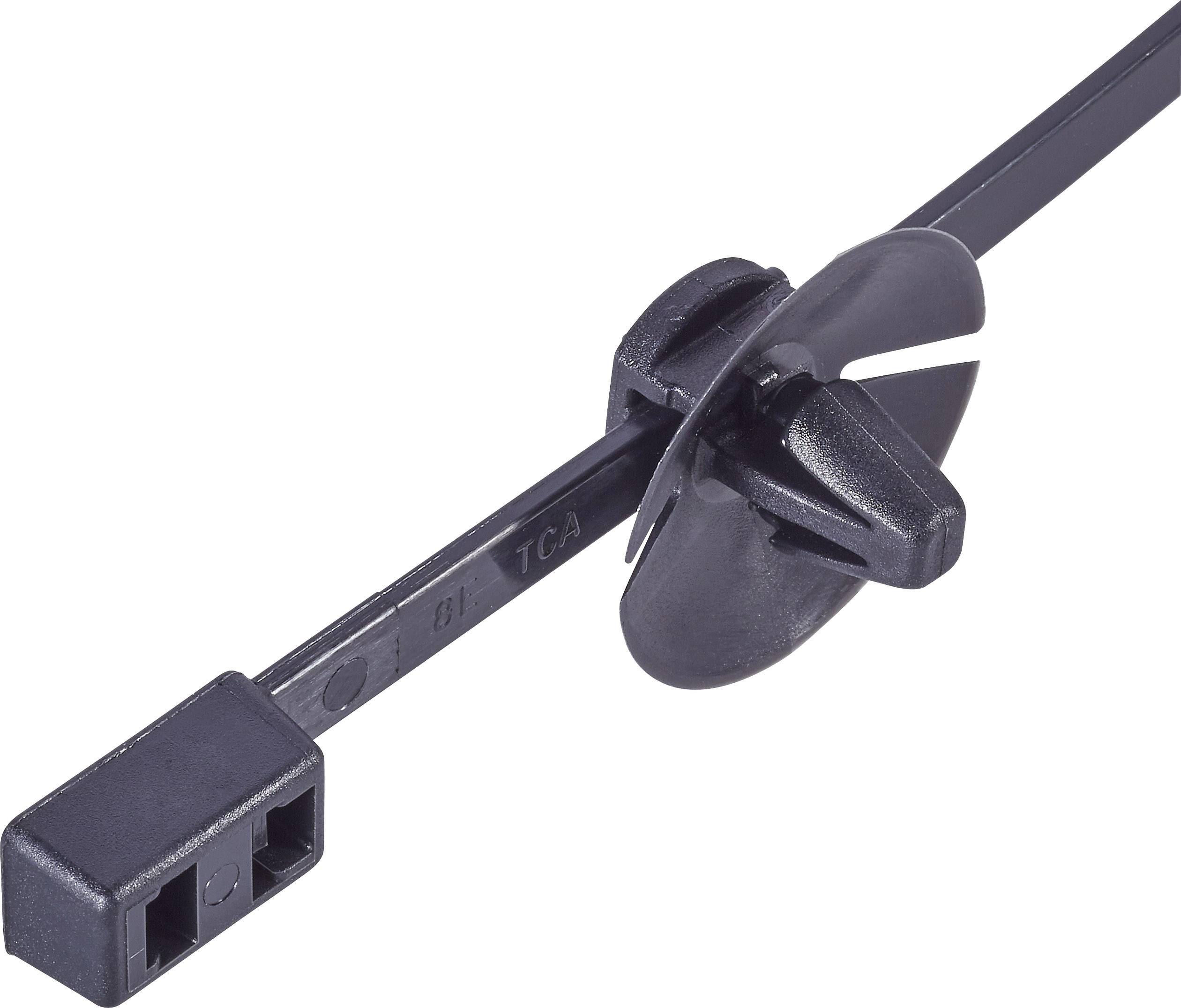

HellermannTyton 117-05160 T50RDHSFT6,5 Cable tie 210 mm 4.70 mm Black Spring toggle and disc 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cable tie
Content
1 pc(s)
Cable tie length
210 mm
Cable tie width
4.70 mm
Cable tie features
Spring toggle and disc
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 0.44
10
7% = € 0.03
€ 0.41
50
11% = € 0.05
€ 0.39
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 0.44 / piece)
€ 0.50
-12 %
€ 0.44
plus VAT.
14-day return policy included
Highlights & Details
Our service for you
Technical specifications
- Flame retardant in accordance with UL94 V2
- Mounting hole diameter: 6.3 - 6.7 mm
- Plate diameter: 22.4 mm
- Product type
Cable tie
- Content
1 pc(s)
- Factory colour
Black
- Cable tie length
210 mm
- Cable tie width
4.70 mm
- Cable tie features
Spring toggle and disc
- Gearing
Inside
- Max. temperature
+145 °C
- Min. temperature
-40 °C
- Halogen-free
Yes
- Material
Polyamide 6.6
- Max. sheet thickness
2.00 mm
- Min. sheet thickness
0.7 mm
- Fire protection properties
UL94 V2.
- Max. bundle diameter
45 mm
- Manufacturer part #
117-05160
- Mounting Ø (max.)
6.7 mm
- Mounting Ø (min.)
6.3 mm
- RoHS-compliant
Yes
- Type
T50RDHSFT6,5
Documents & Downloads
Datasheet
Datasheet 1198952 HellermannTyton 117-05160 T50RDHSFT6,5 Cable tie 210 mm 4.70 mm Black Spring toggle and disc 1 pc(s)
Description
this an historic product which is not available, thus not updated anymore
