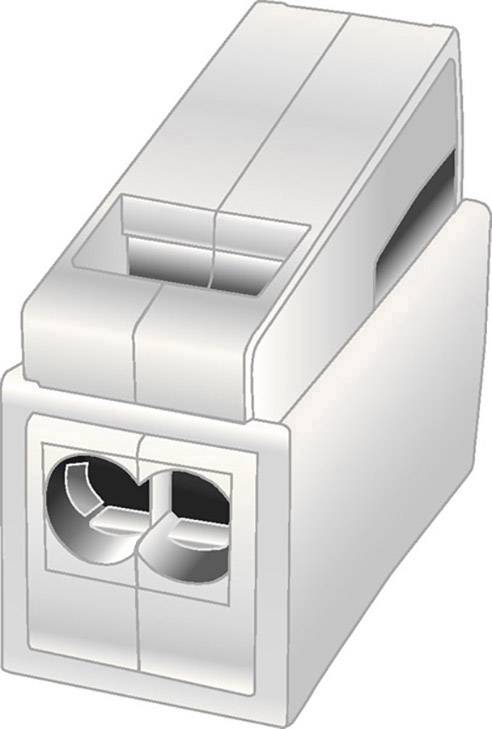

HellermannTyton 148-90023 HECL-2/1-PA66-WH Lamp terminal flexible: 0.5- fixed: 0.75- Number of pins: 3 1 pc(s) White
EAN:
Part number:
Item no:
Product type
Lamp terminal
Cross section (flexible) (min.)
0.5 mm²
Cross section (inflexible) (min.)
0.75 mm²
Number of pins
3
Nominal current - rounded value
24 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
10
-
€ 0.31
30
6% = € 0.02
€ 0.29
50
13% = € 0.04
€ 0.27
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 10
Total (€ 0.31 / piece)
€ 3.10
plus VAT.
14-day return policy included
Highlights & Details
HelaCon Lux Terminal
Our service for you
Technical specifications
- Product type
Lamp terminal
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (inflexible) (min.)
0.75 mm²
- Number of pins
3
- Factory colour
White
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Content
1 pc(s)
- Manufacturer part #
148-90023
- Stripping length
11 mm
- Connection
Pull spring
- Nominal voltage
450 V
- RoHS-compliant
Yes
- Temperature range
-5 °C to +100 °C
Documents & Downloads
Datasheet
Datasheet 1519587 HellermannTyton 148-90023 HECL-2/1-PA66-WH Lamp terminal flexible: 0.5- fixed: 0.75- Number of pins: 3 1 pc(s) White
User & Safety Instructions
User & Safety Instructions 1519587 HellermannTyton 148-90023 HECL-2/1-PA66-WH Lamp terminal flexible: 0.5- fixed: 0.75- Number of pins: 3 1 pc(s) White
Description
Scope of delivery
- 11 mm
- This text is machine translated.
