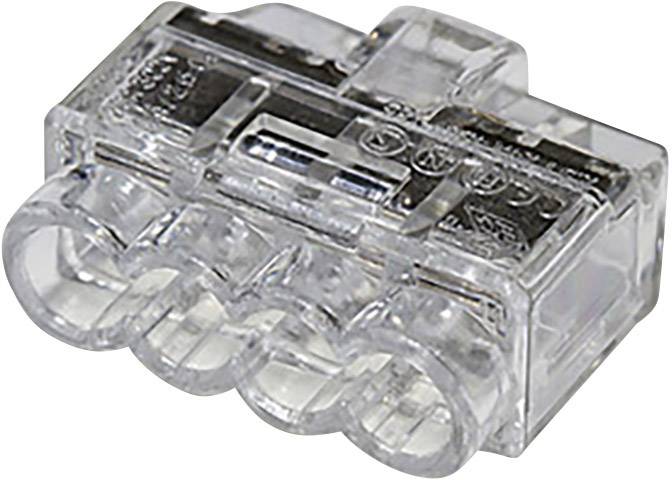

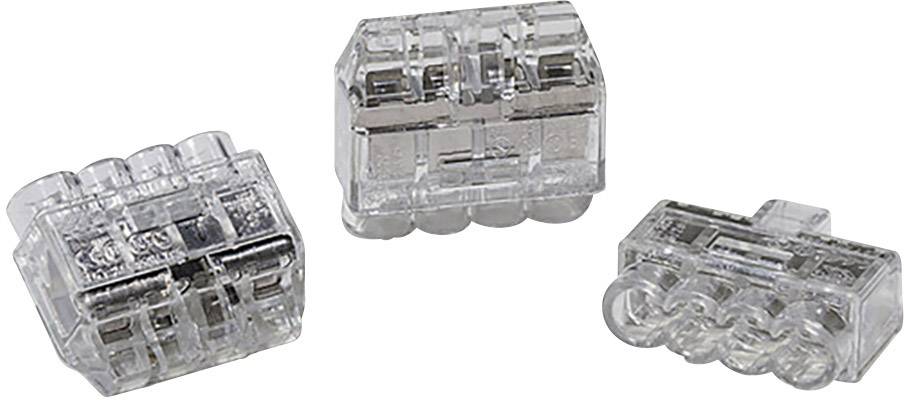

HellermannTyton 148-90038 HCPM-4 Connector clip flexible: 1-2.5 mm² fixed: 0.5-2.5 mm² Number of pins: 4 1 pc(s) Transpa
EAN:
Part number:
Item no:
Product type
Connector clip
Cross section (flexible) (min.)
1 mm²
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (min.)
0.5 mm²
Cross section (inflexible) (max.)
2.5 mm²
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
10
-
€ 0.28
30
11% = € 0.03
€ 0.25
50
14% = € 0.04
€ 0.24
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 10
Total (€ 0.28 / piece)
€ 2.80
plus VAT.
14-day return policy included
Technical specifications
- Product type
Connector clip
- Cross section (flexible) (min.)
1 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- Number of pins
4
- Factory colour
Transparent
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Content
1 pc(s)
- Dim
(L x W) 16.5 mm x 19.4 mm
- Manufacturer part #
148-90038
- Stripping length
11 mm
- Connection
Pull spring
- Wire protection
Yes
- Insulation material
PC
- Nominal voltage
450 V
- Width
19.4 mm
- Length
16.5 mm
- RoHS-compliant
Yes
- Temperature range
-30 °C - +85 °C

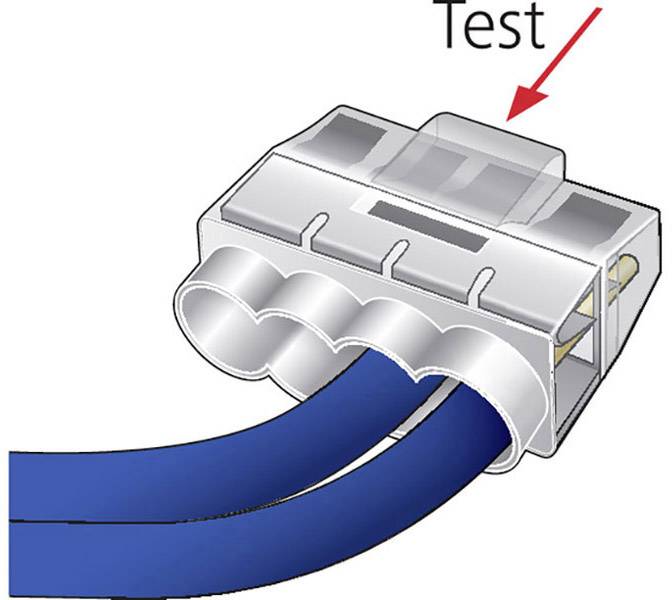

- Connector clip features
Test window
