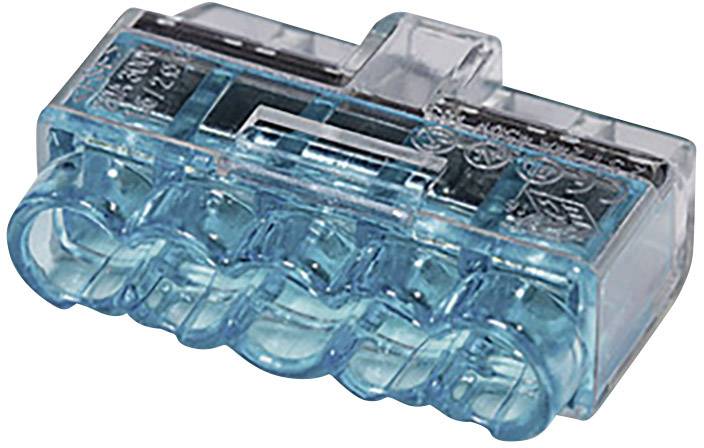

Plastic connection clamp with blue and transparent casing, suitable for connecting multiple cables in electrical installations.

Image similar

Plastic connection clamp with blue and transparent casing, suitable for connecting multiple cables in electrical installations.

Several multi-coloured cable connectors in various sizes, including purple, black, white, orange and yellow.

'Blue cable end sleeve housing with stripped copper wires. Length: 11 mm.'

A burnt toast with a red cross on it, symbolised as a warning to monitor bread toasting in good time.

Blue and gold cylinder measuring 11 mm in length.

Cross-section of a coaxial cable with visible layers: outer sheath, screening, dielectric, and inner conductor.

Socket with red cross indicates improper or prohibited use of a cable or connection.

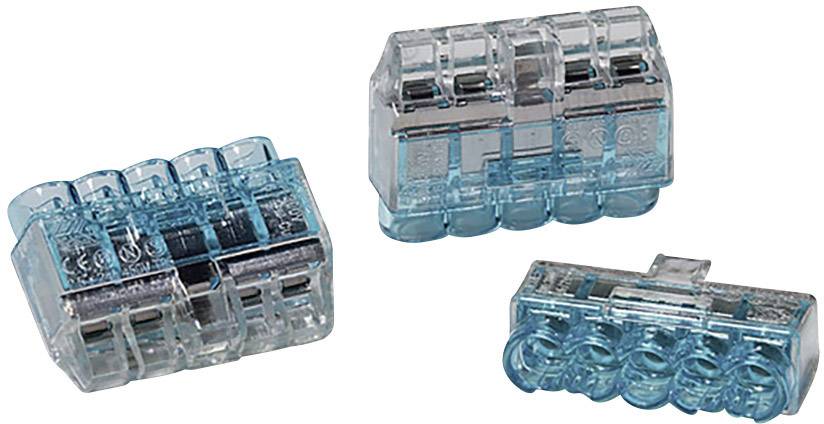

Three transparent, blue electrical connectors in various shapes, used for securely connecting cables.

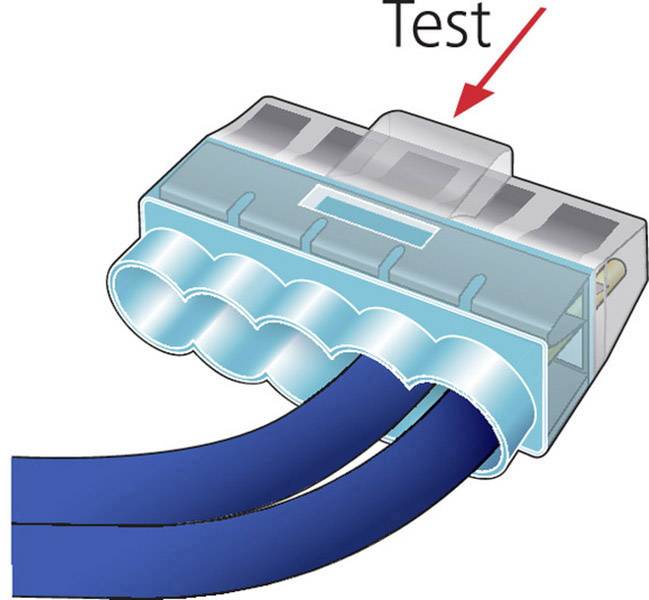

A blue cable plug is connected to two blue cables. A red arrow points to the plug with the word 'Test' above it.

1/9

Image similar

HellermannTyton

Datasheet (PDF)

Deutsch (Deutschland)

Fast track dispatch on Tue, 6 Oct

348 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Minimum order quantity: 10

Total (€ 0.33 / piece)

€ 3.30

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Factory colour: Blue

Length: 16.5 mm

Width: 23.7 mm

Connector clip features: Test window

Connection: Pull spring

Nominal current: 24 A

Nominal voltage: 450 V

Cross section (flexible) (max.): 2.5 mm²

Cross section (flexible) (min.): 1 mm²

Cross section (inflexible) (max.): 2.5 mm²

Cross section (inflexible) (min.): 0.5 mm²

Number of pins: 5

Insulation material: PC

Wire protection: Yes

Stripping length: 11 mm

Temperature range: -30 °C - +85 °C

UKCA: yes

Documents & Downloads

Datasheet

Deutsch (Deutschland)

Datasheet 1517508 HellermannTyton 148-90039 HCPM-5 Connector clip flexible: 1-2.5 mm² fixed: 0.5-2.5 mm² Number of pins: 5 1 pc(s) Blue
