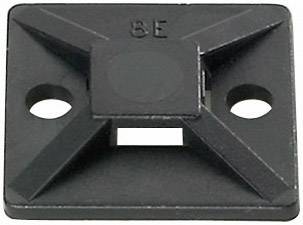

HellermannTyton 151-28320 Cable mount Self-adhesive, Screw fixing 151-28320 4x thread, halogen-free, UV-proof, weather-p
EAN:
Part number:
Item no:
Product type
Cable mount
Fastening method
Self-adhesive
Screw fixing
Material
Polyamide 6.6
Features
4x thread
halogen-free
UV-proof
weather-proof
Max. cable tie width
4.1 mm
Datasheet (PDF)
Quantity (Set(s))
Savings
Package size (plus VAT.)
1
-
€ 2.34
10
7% = € 0.17
€ 2.17
25
10% = € 0.24
€ 2.10
Volume discounts vary depending on the seller
You save € 0.00
Number (Package size 2 pc(s))
Total (€ 1.17 / piece)
€ 2.34
plus VAT.
14-day return policy included
Highlights & Details
MB, TY mounting base, screw-mounted/self-adhesive
- Black
- Cable mount
- Self-adhesive, Screw fixing
Our service for you
Technical specifications
- Flame-retardant according to UL94 V2 (without adhesive)
- Product type
Cable mount
- Features
4x thread
halogen-free
UV-proof
weather-proof
- Max. cable tie width
4.1 mm
- Fastening method
Self-adhesive
Screw fixing
- Material
Polyamide 6.6
- Min. temperature
-40 °C
- Max. temperature
+85 °C
- Mounting Ø (min.)
3.10 mm
- Mounting Ø (max.)
3.10 mm
- Factory colour
Black
- Halogen-free
Yes
- Content
2 pc(s)
- Manufacturer part #
151-28320
- Dimensions
19 x 19 x 3.8 mm
- RoHS-compliant
Yes
- Type
151-28320
- Material (details)
Polyamide 6.6 (PA66)
- Operating temperature
-40 - +85 ºC, short-term +105 °C (500 h)
Documents & Downloads
Datasheet
Datasheet 3374317 HellermannTyton 151-28320 Cable mount Self-adhesive, Screw fixing 151-28320 4x thread, halogen-free, UV-proof, weather-p
User & Safety Instructions
User & Safety Instructions 3374317 HellermannTyton 151-28320 Cable mount Self-adhesive, Screw fixing 151-28320 4x thread, halogen-free, UV-proof, weather-p
Description
These mounting bases can be universally used in conjunction with cable ties to stabilise and secure bundles. Whereas the arched plate of the TY3G1(S) and TY8G1(S) bases provides optimum support for larger cable bundles, the MB bases allow cable ties to be inserted from all 4 sides. The self-adhesive MB4CA base has the added advantage that it can also be mounted with a screw in its centre. The self-adhesive versions are identifiable by the suffix A (MB4CA) and S (TY3GIS), respectively.
Applications: These bases are usually used in switch cabinet construction, industrial series production and in areas where the large base plate guarantees a secure fixing.
