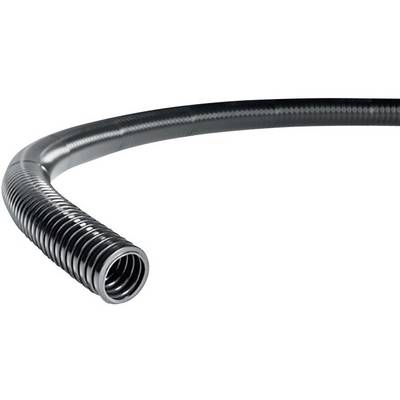

HellermannTyton 166-11101 HG-SW11-PA6-BK Sleeving Black 80.20 mm 50 m
EAN:
Part number:
Item no:
Product type
Sleeving
Content
50 m
Material
Polyamide 6
Conduit features
halogen-free
UV-resistant
oil-resistant
highly flexible
Abrasion-resistant
Inside diameter
80.20 mm
Datasheet (PDF)
Number
Total (1 m = € 1.76)
€ 88.23
plus VAT.
Only 4 Set(s) available
Technical specifications
- IP66 protection rating
- Product type
Sleeving
- Content
50 m
- Factory colour
Black
- Material
Polyamide 6
- Conduit features
halogen-free
UV-resistant
oil-resistant
highly flexible
Abrasion-resistant
- Inside diameter
80.20 mm
- Outside Ø
11.5 mm
- Max. temperature
+120 °C
- Min. temperature
-40 °C
- Bend radius
20 mm
- Fire protection properties
V2
- Manufacturer part #
166-11101
- RoHS-compliant
Yes
- Type
HG-SW11-PA6-BK
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1993684 HellermannTyton 166-11101 HG-SW11-PA6-BK Sleeving Black 80.20 mm 50 m
User & Safety Instructions
User & Safety Instructions 1993684 HellermannTyton 166-11101 HG-SW11-PA6-BK Sleeving Black 80.20 mm 50 m
Description

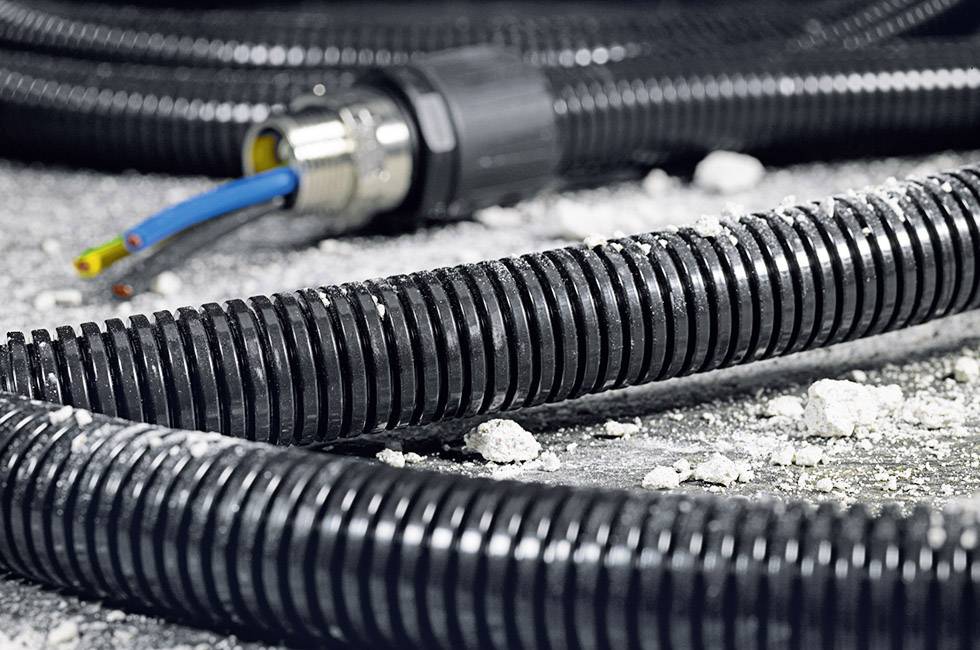

Very flexible. Long life. Good abrasion resistance. Highly impact-resistant and dimensionally stable. Very good resistance to solvents and oils. Low smoke density and toxicity. Self-extinguishing to UL94 V2. Halogen, sulphur and phosphorous-free. Colors: Black. Gray (RAL 7031) on request the flexible standard corrugated pipe for industrial applications in mechanical engineering, plant construction, in control cabinets and public buildings
