Buy HellermannTyton 169-22220 IWS-22-N6-BK-L1 Isolvin Corrugated Conduit Black 50 M

Flexible corrugated black plastic conduit, curved and adaptable, suitable for cable routing and protection against external influences.

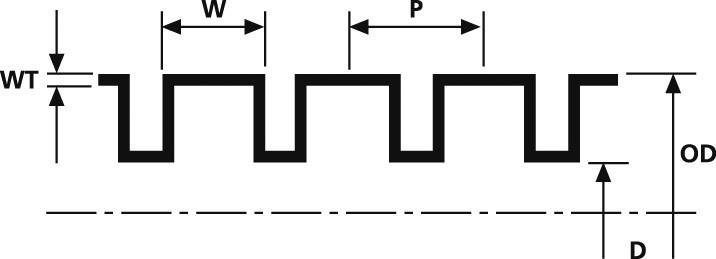

Cross-section of a sinusoidal metal structure with dimension labels: WT (material thickness), W (wave width), P (pitch), OD (outer diameter), D (height).

1/2

Product type

Conduit

Content

50 m

Material

Polyamide

Conduit features

halogen-free

Abrasion-resistant

Flexible

oil-resistant

UV-resistant

Inside diameter

21.30 mm

Fast track dispatch on Fri, 2 Oct

4 Set(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Set(s)

Total (1 m = € 3.61)

€ 180.66

plus VAT.

Only 4 Set(s) available

14-day return policy included

Report legal concerns

Highlights & Details

HellermannTyton 169-22220 IWS-22-N6-BK-L1 Isolvin Corrugated Conduit Black 50 M

Our service for you

Technical specifications

Product type: Conduit

Content: 50 m

Dim: (OD x D x WT x P x W) 25.4 x 21.3 x 0.45 x 3.1 x 2.2 mm

Factory colour: Black

Material: Polyamide

Conduit features: halogen-free
Abrasion-resistant
Flexible
oil-resistant
UV-resistant

Inside diameter: 21.30 mm

Outside Ø: 25.40 mm

Max. temperature: +120 °C

Min. temperature: -40 °C

Fire protection properties: Complies with UL94 HB and FMVSS-302.

Manufacturer part #: 169-22220

Dimensions: (OD x D x WT x P x W) 25.4 x 21.3 x 0.45 x 3.1 x 2.2 mm

RoHS-compliant: Yes

Type: IWS-22-N6-BK-L1

Material (details): Polyamide 6 (PA6)

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 541858 HellermannTyton 169-22220 IWS-22-N6-BK-L1 Isolvin Corrugated Conduit Black 50 M

Description

This corrugated conduit made of polyamide 6 is characterised above all by its excellent resistance to oils, fuels and solvents. It is resistant to abrasion and offers excellent mechanical protection as well as excellent fatigue strength under alternating flexural stress.
