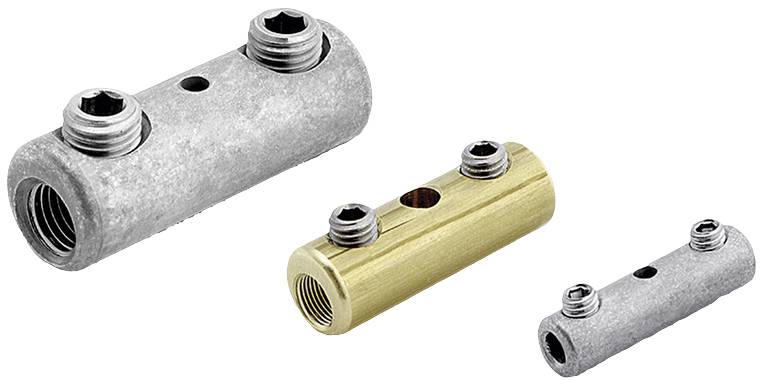

HellermannTyton 435-01510 Connector 650-SNCU-SR Screw connector flexible: - fixed: 6-50 mm² 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Screw connector
Cross section (flexible) (min.)
6 mm²
Cross section (flexible) (max.)
50 mm²
Cross section (inflexible) (min.)
6 mm²
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 11.76
3
6% = € 0.65
€ 11.11
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 11.76 / piece)
€ 11.76
plus VAT.
14-day return policy included
Technical specifications
- Diameter 18 mm
- Packaging type
Piece
- Product type
Screw connector
- Cross section (flexible) (min.)
6 mm²
- Cross section (flexible) (max.)
50 mm²
- Cross section (inflexible) (min.)
6 mm²
- Cross section (inflexible) (max.)
50 mm²
- Content
1 pc(s)
- Manufacturer part #
435-01510
- Connection
Screw terminal
- Contact material
Tin galvanized
- Length
40 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2917478 HellermannTyton 435-01510 Connector 650-SNCU-SR Screw connector flexible: - fixed: 6-50 mm² 1 pc(s)
Information
Information 2917478 HellermannTyton 435-01510 Connector 650-SNCU-SR Screw connector flexible: - fixed: 6-50 mm² 1 pc(s)
Description
Galvanically tin-plated screw connector without a separation bar and tear-off screws for use with multi- and single-wire aluminum and copper conductors. They correspond to the requirements of DIN 47640 for shrink tubing and can be used for all other types of connection sets.
This text is machine translated.
This text is machine translated.
Features
- For connecting different wire cross-sections
- Suitable for aluminum and copper conductors
- Tin-plated connector body without separation bar and tear-off screws
