HellermannTyton 800-00001 RA1-PVC-BK-75M EdgeGuard Edge Protector Black
EAN:
Part number:
Item no:
Material
PVC
Type
Edge Protector
Factory colour
Black
Min. temperature
-65 °C
Max. temperature
+105 °C
Datasheet (PDF)
Quantity (meter)
Savings
Package size (plus VAT.)
1
-
€ 4.61
5
7% = € 0.30
€ 4.31
10
9% = € 0.42
€ 4.19
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 4.61 / piece)
€ 5.03
-8 %
€ 4.61
plus VAT.
14-day return policy included
Highlights & Details
HellermannTyton 800-00001 RA1-PVC-BK-75M EdgeGuard Edge Protector Black
Our service for you
Technical specifications
- Fire protection property: UL94 HB

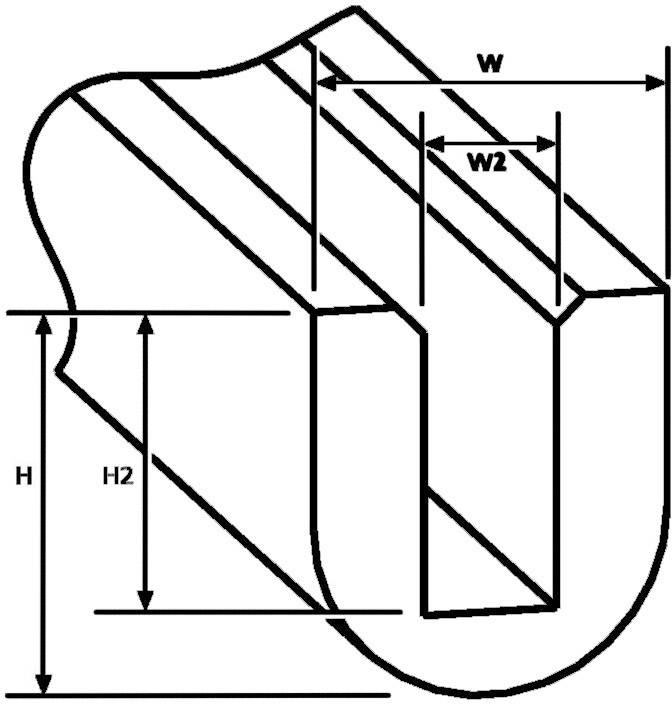

- (W x H x W 2 x 6.4 x 2.4 x 7.1 x H2) 5.6 mm
- Type
Edge Protector
- Factory colour
Black
- Min. temperature
-65 °C
- Max. temperature
+105 °C
- Width
6.4 mm
- Height
7.1 mm
- Dim
(W x H) 6.4 mm x 7.1 mm
- Material
PVC
- Content
Sold per metre
- Type
RA1-PVC-BK-75M
- RoHS-compliant
Yes
- Material (details)
Soft PVC
- Max. length sold by the metre
75 m
- Fire protection properties
UL94 HB
- Type
RA1
- Temperature range
-65 - +105 °C
Documents & Downloads
Datasheet
Datasheet 542889 HellermannTyton 800-00001 RA1-PVC-BK-75M EdgeGuard Edge Protector Black
User & Safety Instructions
User & Safety Instructions 542889 HellermannTyton 800-00001 RA1-PVC-BK-75M EdgeGuard Edge Protector Black
Description
EdgeGuard is made from flexible PVC and is easy to process.
It helps in the protection of cables, which are led through areas with sharp edges. EdgeGuard is also an attractive solution for covering the plate edges.
It helps in the protection of cables, which are led through areas with sharp edges. EdgeGuard is also an attractive solution for covering the plate edges.
